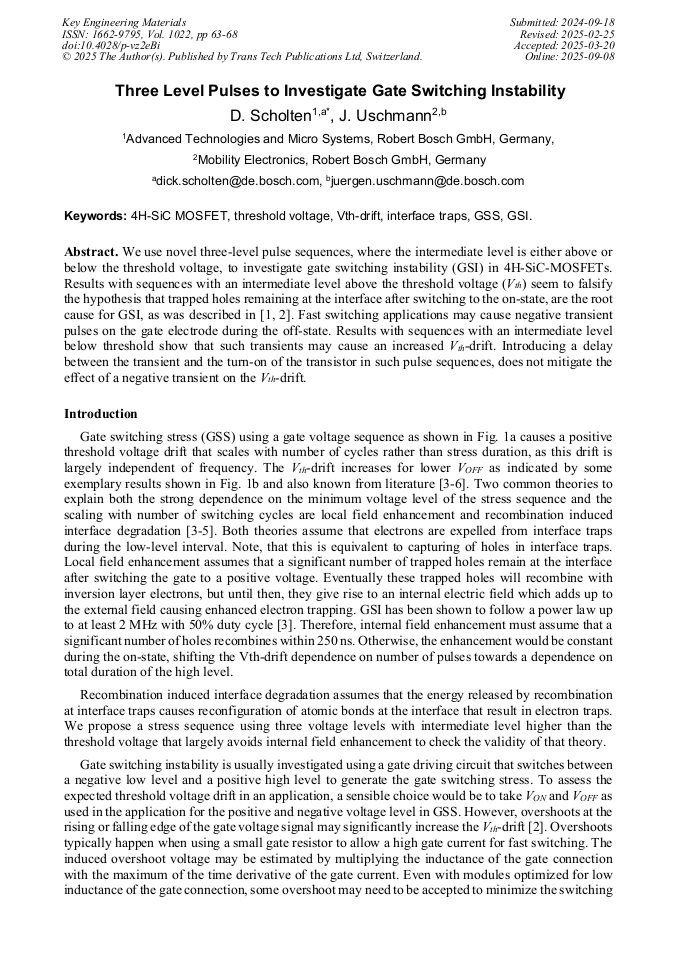

Three Level Pulses to Investigate Gate Switching Instability

Abstract:

We use novel three-level pulse sequences, where the intermediate level is either above or below the threshold voltage, to investigate gate switching instability (GSI) in 4H-SiC-MOSFETs. Results with sequences with an intermediate level above the threshold voltage (V_th) seem to falsify the hypothesis that trapped holes remaining at the interface after switching to the on-state, are the root cause for GSI, as was described in [1, 2]. Fast switching applications may cause negative transient pulses on the gate electrode during the off-state. Results with sequences with an intermediate level below threshold show that such transients may cause an increased V_th-drift. Introducing a delay between the transient and the turn-on of the transistor in such pulse sequences, does not mitigate the effect of a negative transient on the V_th-drift.

• Periodical: Key Engineering Materials (Volume 1022)
• Pages: 63-68
• DOI: https://doi.org/10.4028/p-vz2eBi
• Online since: September 2025
• Authors: Dick Scholten*, Juergen Uschmann
• Keywords: 4H-SiC MOSFET, GSI, GSS, Interface Traps, Threshold Voltage, Vth-Drift

References

[1] Scholten, D., Baringhaus, J., Krebs, D., & Noll, S. (2023). "Hypothesis to Explain Threshold Drift due to Dynamic Bipolar Gate Stress." In Materials Science Forum (Vol. 1090, p.159–164). Trans Tech Publications, Ltd.

DOI: 10.4028/p-bt3i95

[2] H. Jiang, X. Zhong, G. Qiu, L. Tang, X. Qi and L. Ran. "Dynamic Gate Stress Induced Threshold Voltage Drift of Silicon Carbide MOSFET", in IEEE Electron Device Letters, vol. 41, no. 9, pp.1284-1287, Sept. 2020.

DOI: 10.1109/LED.2020.3007626

[3] M. W. Feil et al., "Gate Switching Instability in Silicon Carbide MOSFETs—Part I: Experimental," in IEEE Transactions on Electron Devices, vol. 71, no. 7, pp.4210-4217, July 2024.

DOI: 10.1109/TED.2024.3397636

[4] T. Grasser, M. W. Feil , K. Waschneck , H. Reisinger, J. Berens, D. Waldhoer, A. Vasilev, M. Waltl, T. Aichinger, M. Bockstedte, W. Gustin, and G. Pobegen, "Gate Switching Instability in Silicon Carbide MOSFETs—Part II: Modeling", Transactions on Electron Devices, 71, 4218 (2024).

DOI: 10.1109/TED.2024.3397629

[5] P. Salmen et al., "Gate-switching-stress test: Electrical parameter stability of SiC MOSFETs in switching operation," Microelectronics Reliability, vol. 135, p.114575, Aug. 2022.

DOI: 10.1016/j.microrel.2022.114575

[6] Lelis, A. J., & Habersat, D. B. (2023). "AC-Stress Degradation in SiC MOSFETs". In Materials Science Forum (Vol. 1092, p.151–155). Trans Tech Publications, Ltd

DOI: 10.4028/p-y82029

[7] "Guideline for Evaluating Gate Switching Instability of Silicon Carbide Metal-Oxide-Semiconductor Devices for Power Electronic Conversion", JEP195, JEDEC, Feb (2023)
