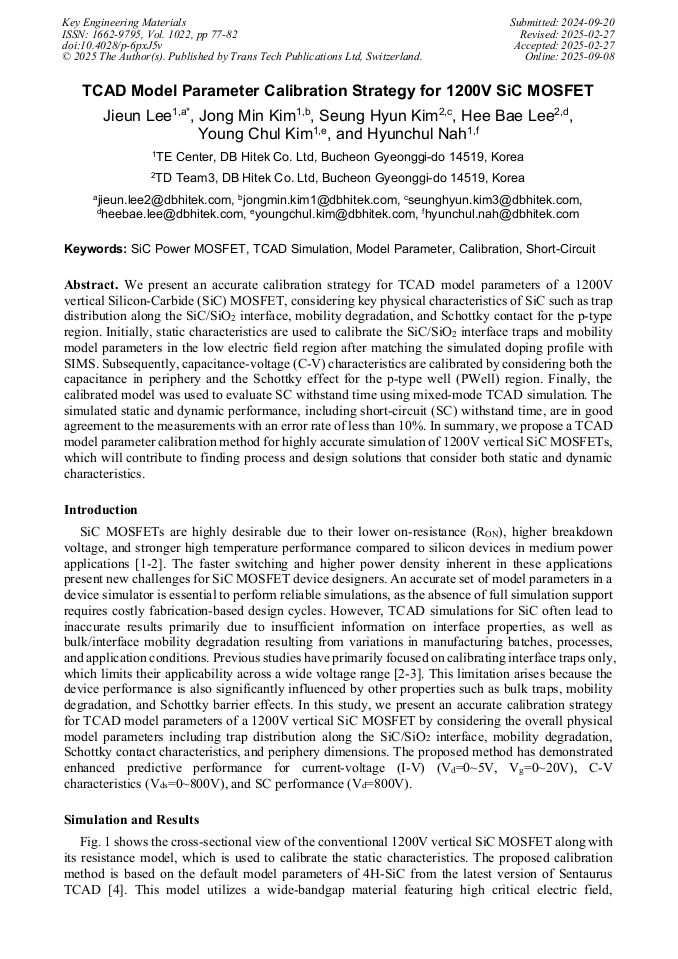

TCAD Model Parameter Calibration Strategy for 1200V SiC MOSFET

Abstract:

We present an accurate calibration strategy for TCAD model parameters of a 1200V vertical Silicon-Carbide (SiC) MOSFET, considering key physical characteristics of SiC such as trap distribution along the SiC/SiO₂ interface, mobility degradation, and Schottky contact for the p-type region. Initially, static characteristics are used to calibrate the SiC/SiO₂ interface traps and mobility model parameters in the low electric field region after matching the simulated doping profile with SIMS. Subsequently, capacitance-voltage (C-V) characteristics are calibrated by considering both the capacitance in periphery and the Schottky effect for the p-type well (PWell) region. Finally, the calibrated model was used to evaluate SC withstand time using mixed-mode TCAD simulation. The simulated static and dynamic performance, including short-circuit (SC) withstand time, are in good agreement to the measurements with an error rate of less than 10%. In summary, we propose a TCAD model parameter calibration method for highly accurate simulation of 1200V vertical SiC MOSFETs, which will contribute to finding process and design solutions that consider both static and dynamic characteristics.

• Periodical: Key Engineering Materials (Volume 1022)
• Pages: 77-82
• DOI: https://doi.org/10.4028/p-6pxJ5v
• Online since: September 2025
• Authors: Jieun Lee*, Jong Min Kim, Seung Hyun Kim, Hee Bae Lee, Young Chul Kim, Hyun Chul Nah
• Keywords: Calibration, Model Parameter, Short-Circuit, SiC Power MOSFET, TCAD Simulation

References

[1] J. Victory, J.R Guitart, R. Krishna, K. Jia, D, Zurek, P. Betak, C. He, and J. Lehocky, Simulation Challenges of SiC MOSFET Switching Performance and Reliability, SISPAD (2023), PL-02.

DOI: 10.23919/sispad57422.2023.10319584

[2] K. Lee, M. Domeij, B. Buono, K. Gumaelius, J. Franchi, F. Allerstam, J. Victory, M. Baghaie, and T. Neyer, Device Simulation Modeling of 1200 V SiC MOSFETs, PCIM Europe (2017), 190-195.

[3] L. Maresca, I. Matacena, M. Riccio, A. Irace, G. Breglio, and S. Deliento, TCAD model calibration for the SiC/SiO2 interface trap distribution of a planar SiC MOSFET, IEEE WiPDA Asia (2020).

DOI: 10.1109/wipdaasia49671.2020.9360298

[4] Sentaurus TCAD Tools Suite. V-2023.09. Synopsys.

[5] V.V. Afanasev, M. Bassler, G. Pensl, and M. Schulz. "Intrinsic SiC/SiO2 interface states." Physica Status Solidi (a) 162, no. 1 (1997), 321-337.

DOI: 10.1002/1521-396x(199707)162:1<321::aid-pssa321>3.0.co;2-f

[6] K. Vasilevskiy, and K. Zenkentes, Advancing Silicon Carbide Electronics Technology I, Materials Research Forum, Chaper.3.
