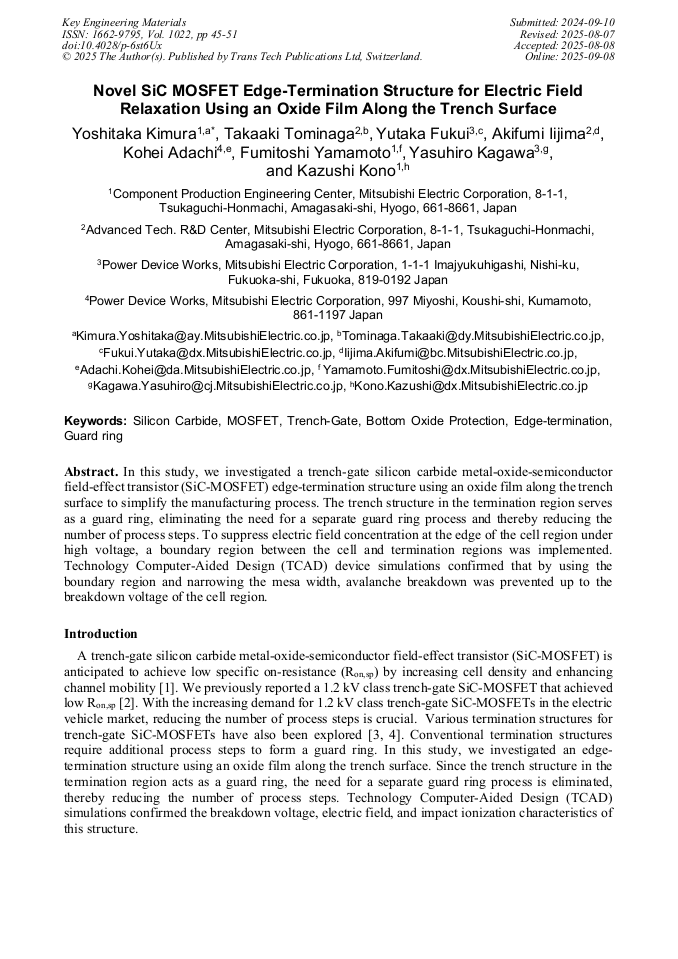

Novel SiC MOSFET Edge-Termination Structure for Electric Field Relaxation Using an Oxide Film along the Trench Surface

Abstract:

In this study, we investigated a trench-gate silicon carbide metal-oxide-semiconductor field-effect transistor (SiC-MOSFET) edge-termination structure using an oxide film along the trench surface to simplify the manufacturing process. The trench structure in the termination region serves as a guard ring, eliminating the need for a separate guard ring process and thereby reducing the number of process steps. To suppress electric field concentration at the edge of the cell region under high voltage, a boundary region between the cell and termination regions was implemented. Technology Computer-Aided Design (TCAD) device simulations confirmed that by using the boundary region and narrowing the mesa width, avalanche breakdown was prevented up to the breakdown voltage of the cell region.
