Study of SiC Thyristors with Integrated Temperature Sensors

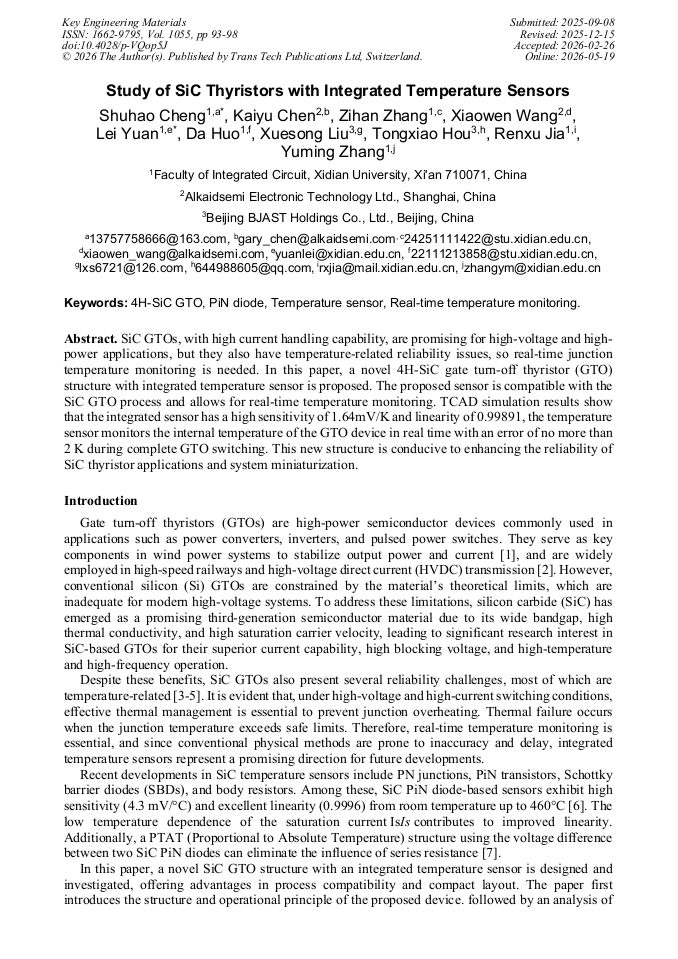

Article Preview
View Pdf By email

Abstract:

SiC GTOs, with high current handling capability, are promising for high-voltage and high-power applications, but they also have temperature-related reliability issues, so real-time junction temperature monitoring is needed. In this paper, a novel 4H-SiC gate turn-off thyristor (GTO) structure with integrated temperature sensor is proposed. The proposed sensor is compatible with the SiC GTO process and allows for real-time temperature monitoring. TCAD simulation results show that the integrated sensor has a high sensitivity of 1.64mV/K and linearity of 0.99891, the temperature sensor monitors the internal temperature of the GTO device in real time with an error of no more than 2 K during complete GTO switching. This new structure is conducive to enhancing the reliability of SiC thyristor applications and system miniaturization.

You have full access to the following eBook
Design of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

93-98

DOI:

https://doi.org/10.4028/p-VQop5J

Citation:

Cite this paper

Online since:

May 2026

Authors:

Shu Hao Cheng, Kai Yu Chen, Zi Han Zhang*, Xiao Wen Wang, Lei Yuan, Da Huo, Xue Song Liu, Tong Xiao Hou, Ren Xu Jia, Yu Ming Zhang

Keywords:

4H-SiC GTO, PiN Diode, Real-Time Temperature Monitoring, Temperature Sensor
