Comparative Study of 1.2kV 4H-SiC Bi-Directional MOSFET (BiD-MOS) Design Approaches: 2-Chip vs Monolithic Integration

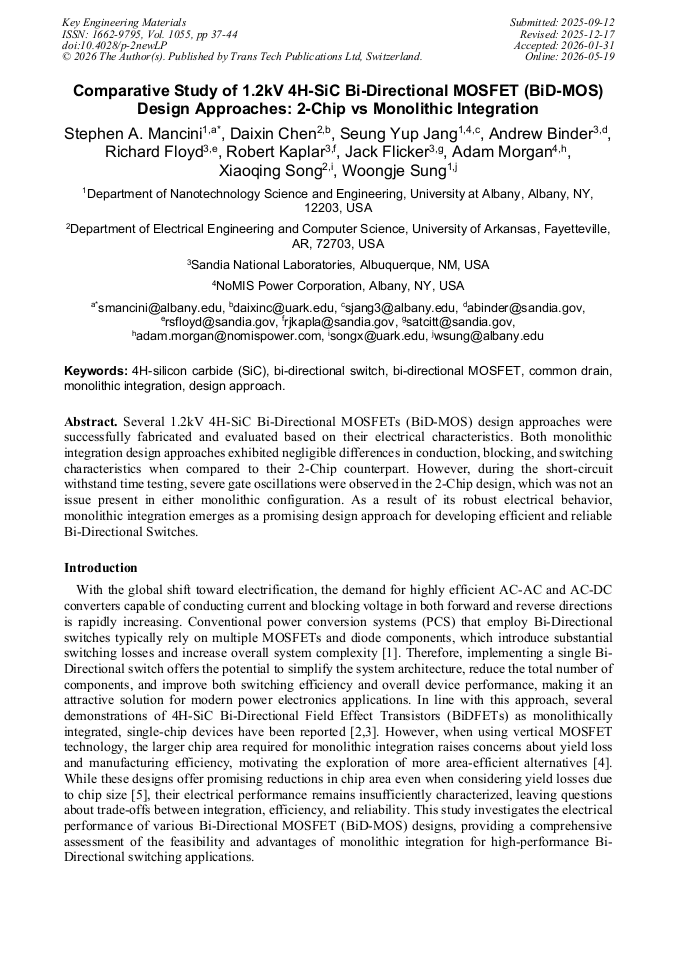

Article Preview
View Pdf By email

Abstract:

Several 1.2kV 4H-SiC Bi-Directional MOSFETs (BiD-MOS) design approaches were successfully fabricated and evaluated based on their electrical characteristics. Both monolithic integration design approaches exhibited negligible differences in conduction, blocking, and switching characteristics when compared to their 2-Chip counterpart. However, during the short-circuit withstand time testing, severe gate oscillations were observed in the 2-Chip design, which was not an issue present in either monolithic configuration. As a result of its robust electrical behavior, monolithic integration emerges as a promising design approach for developing efficient and reliable Bi-Directional Switches.

You have full access to the following eBook
Design of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

37-44

DOI:

https://doi.org/10.4028/p-2newLP

Citation:

Cite this paper

Online since:

May 2026

Authors:

Stephen A. Mancini*, Dai Xin Chen, Seung Yup Jang, Andrew Binder, Richard Floyd, Robert Kaplar, Jack Flicker, Adam Morgan, Xiao Qing Song, Woongje Sung

Keywords:

4H-Silicon Carbide (SiC), Bi-Directional MOSFET, Bi-Directional Switch, Common Drain, Design Approach, Monolithic Integration

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
