The Tunneling Field-Effect Transistor as Novel Device Concept for High-Frequency Hard-Switching Power Electronics

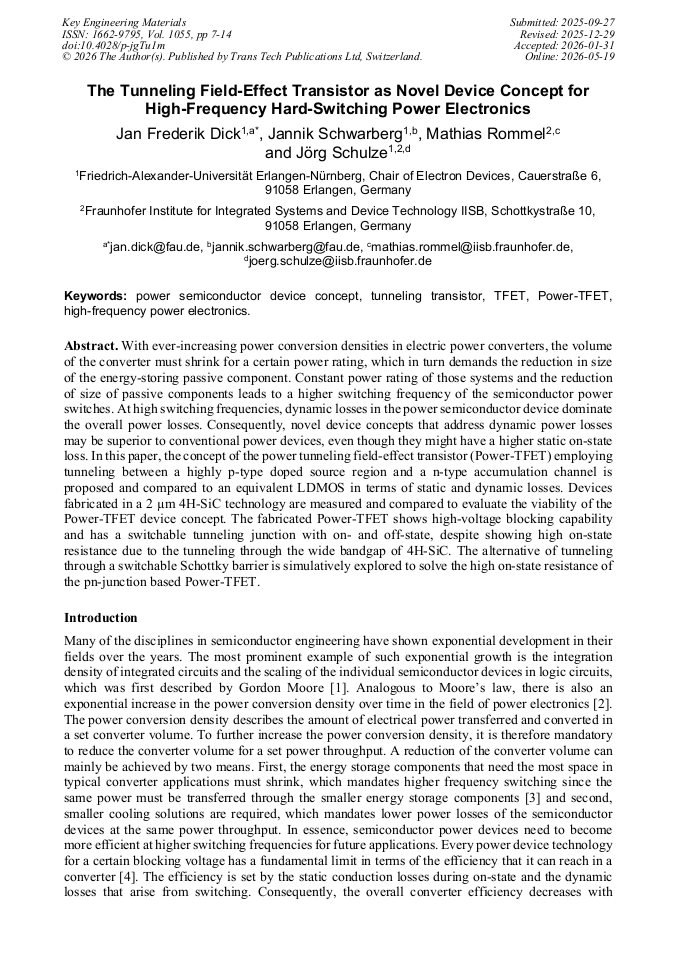

Article Preview

View Pdf By email

Abstract:

With ever-increasing power conversion densities in electric power converters, the volume of the converter must shrink for a certain power rating, which in turn demands the reduction in size of the energy-storing passive component. Constant power rating of those systems and the reduction of size of passive components leads to a higher switching frequency of the semiconductor power switches. At high switching frequencies, dynamic losses in the power semiconductor device dominate the overall power losses. Consequently, novel device concepts that address dynamic power losses may be superior to conventional power devices, even though they might have a higher static on-state loss. In this paper, the concept of the power tunneling field-effect transistor (Power-TFET) employing tunneling between a highly p-type doped source region and a n-type accumulation channel is proposed and compared to an equivalent LDMOS in terms of static and dynamic losses. Devices fabricated in a 2 µm 4H-SiC technology are measured and compared to evaluate the viability of the Power-TFET device concept. The fabricated Power-TFET shows high-voltage blocking capability and has a switchable tunneling junction with on-and off-state, despite showing high on-state resistance due to the tunneling through the wide bandgap of 4H-SiC. The alternative of tunneling through a switchable Schottky barrier is simulatively explored to solve the high on-state resistance of the pn-junction based Power-TFET.

You have full access to the following eBook

Design of SiC Power Devices

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

7-14

DOI:

https://doi.org/10.4028/p-jgTu1m

Citation:

Cite this paper

Online since:

May 2026

Authors:

Jan Frederik Dick*, Jannik Schwarberg, Mathias Rommel, Jörg Schulze

Keywords:

High-Frequency Power Electronics, Power Semiconductor Device Concept, Power-TFET, TFET, Tunneling Transistor

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

[1] G. E. Moore, "Cramming More Components Onto Integrated Circuits," Proc. IEEE, vol. 86, no. 1, p.82–85, 1998.

DOI: 10.1109/jproc.1998.658762

[2] H. Ohashi, "Power electronics innovation with next generation advanced power devices," Proceedings of the 25th International Telecommunications Energy - INTELEC '03, pp.9-13, 2003. [Online]. Available: https://ieeexplore.ieee.org/document/1252084

[3] J. Zou, N. C. Brooks, S. Coday, N. M. Ellis, and R. C. Pilawa-Podgurski, "On the Size and Weight of Passive Components: Scaling Trends for High-Density Power Converter Designs," in 2022 IEEE 23rd Workshop on Control and Modeling for Power Electronics (COMPEL 2022): Tel-Aviv, Israel, June 20-23, 2022, Tel Aviv, Israel, 2022, p.1–7.

DOI: 10.1109/compel53829.2022.9829957

[4] T. Heckel, C. Rettner, and M. Marz, "Fundamental efficiency limits in power electronic systems," in 2015 IEEE International Telecommunications Energy Conference (INTELEC), Osaka, Japan, 2015, p.1–6.

DOI: 10.1109/intlec.2015.7572399

[5] W. Hansch, C. Fink, J. Schulze, and I. Eisele, "A vertical MOS-gated Esaki tunneling transistor in silicon," Thin Solid Films, vol. 369, 1-2, p.387–389, 2000.

DOI: 10.1016/S0040-6090(00)00896-8

[6] M. T. Bohr and I. A. Young, "CMOS Scaling Trends and Beyond," IEEE Micro, vol. 37, no. 6, p.20–29, 2017.

DOI: 10.1109/MM.2017.4241347

[7] A. C. Seabaugh and Q. Zhang, "Low-Voltage Tunnel Transistors for Beyond CMOS Logic," Proc. IEEE, vol. 98, no. 12, p.2095–2110, 2010.

DOI: 10.1109/JPROC.2010.2070470

[8] W. Vandenberghe and A. Verhulst, "Tunnel field-effect transistor with gated tunnel barrier," USA US8120115B2, Feb 21, 2012.

[9] B. J. Baliga, Fundamentals of power semiconductor devices. Cham, Switzerland: Springer, 2019.

[10] S. M. Sze and K. K. Ng, Physics of Semiconductor Devices, 3rd ed. Hoboken, NJ, USA: John Wiley & Sons, Inc, 2006. [Online]. Available: https://onlinelibrary.wiley.com/doi/book/10.1002/0470068329

[11] A. May et al., "A 4H-SiC CMOS Technology enabling Smart Sensor Integration and Circuit Operation above 500 °C," in 2024 Smart Systems Integration Conference and Exhibition (SSI): 16-18 April 2024: conference location: Hamburg, Germany, Hamburg, Germany, 2024, pp.1-5.

DOI: 10.1109/ssi63222.2024.10740550

[12] D. Haehnel, I. A. Fischer, A. Hornung, A.-C. Koellner, and J. Schulze, "Tuning the Ge(Sn) Tunneling FET: Influence of Drain Doping, Short Channel, and Sn Content," IEEE Trans. Electron Devices, vol. 62, no. 1, p.36–43, 2015.

DOI: 10.1109/TED.2014.2371065

[13] K. K. Bhuwalka, J. Schulze, and I. Eisele, "A Simulation Approach to Optimize the Electrical Parameters of a Vertical Tunnel FET," IEEE Trans. Electron Devices, vol. 52, no. 7, p.1541–1547, 2005.

DOI: 10.1109/TED.2005.850618

[14] P. G. Neudeck, J. A. Powell, A. J. Trunek, and D. J. Spry, "Step Free Surface Heteroepitaxy of 3C-SiC Layers on Patterned 4H/6H-SiC Mesas and Cantilevers," MSF, 457-460, p.169–174, 2004.

DOI: 10.4028/www.scientific.net/MSF.457-460.169

[15] S. Chen et al., "High-quality heteroepitaxy of ε-Ga 2 O 3 films on 4H-SiC substrates grown via MOCVD," CrystEngComm, vol. 26, no. 25, p.3363–3369, 2024.

DOI: 10.1039/D4CE00283K

[16] M. Hu et al., "Heteroepitaxy of N-polar AlN on C-face 4H-SiC: Structural and optical properties," APL Materials, vol. 11, no. 12, 2023.

DOI: 10.1063/5.0168970

[17] F. Lanois, "Vertical controlled Schottky diode for use in forward type rectifier, has driver surrounded by insulator that extends in thin layer according to direction, and interdependent control electrode secured to conducting material," FR2975531 (A1), FR FR20110054215 20110516, Nov 23, 2012.

[18] M. Schwarz et al., "The Schottky barrier transistor in emerging electronic devices," Nanotechnology, vol. 34, no. 35, 2023.

DOI: 10.1088/1361-6528/acd05f

[19] L. Knoll and R. Minamisawa, "VERTICAL POWER SEMICONDUCTOR DEVICE AND METHOD FOR OPERATING SUCH A DEVICE," EP3255676 (A1), EP EP20160173688 20160609, Dec 13, 2017.

[20] B. J. Baliga, "The pinch rectifier: A low-forward-drop high-speed power diode," IEEE Electron Device Lett., vol. 5, no. 6, p.194–196, 1984.

DOI: 10.1109/EDL.1984.25884

[21] Synopsys, Inc., "Sentaurus™ Device User Guide: Version Q-2019.12," Synopsys, Inc., Dec. 2019.
