High-Voltage Performance Evaluation of 6.5 kV 4H-SiC JBSFET Architectures and MOSFET with Enhanced 3rd Quadrant Conduction

Article Preview
View Pdf By email

Abstract:

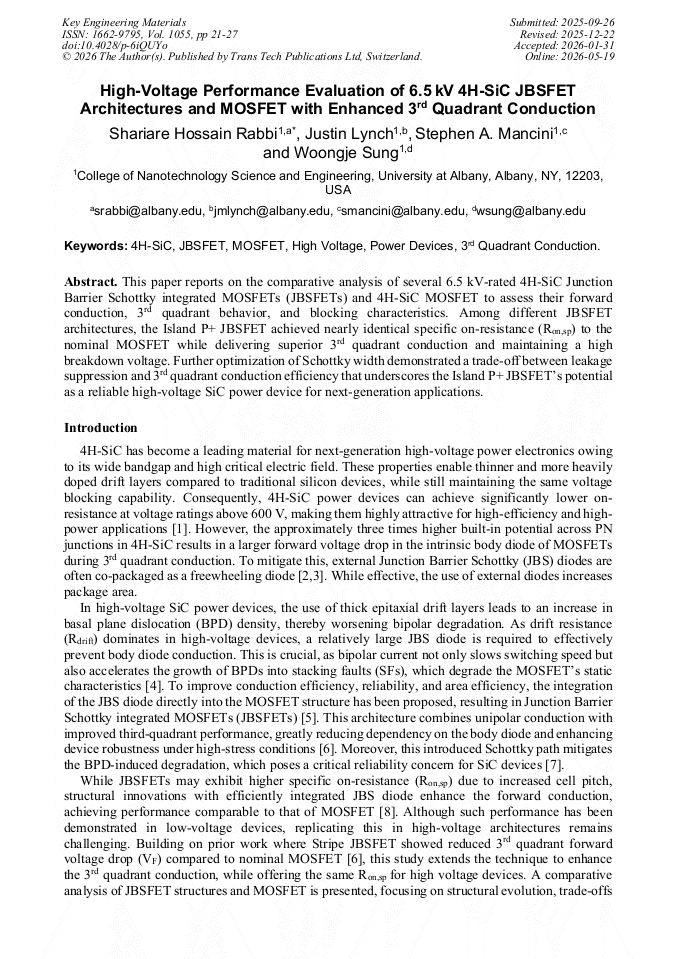

This paper reports on the comparative analysis of several 6.5 kV-rated 4H-SiC Junction Barrier Schottky integrated MOSFETs (JBSFETs) and 4H-SiC MOSFET to assess their forward conduction, 3rd quadrant behavior, and blocking characteristics. Among different JBSFET architectures, the Island P+ JBSFET achieved nearly identical specific on-resistance (Ron,sp) to the nominal MOSFET while delivering superior 3rd quadrant conduction and maintaining a high breakdown voltage. Further optimization of Schottky width demonstrated a trade-off between leakage suppression and 3rd quadrant conduction efficiency that underscores the Island P+ JBSFET’s potential as a reliable high-voltage SiC power device for next-generation applications.

You have full access to the following eBook
Design of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

21-27

DOI:

https://doi.org/10.4028/p-6iQUYo

Citation:

Cite this paper

Online since:

May 2026

Authors:

Shariare Hossain Rabbi*, Justin Lynch, Stephen A. Mancini, Woongje Sung

Keywords:

3rd Quadrant Conduction, 4H-SiC, High Voltage, JBSFET, MOSFET, Power Devices

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0
