Investigation of the P-Body Effect on Reverse Recovery and Static Characteristics of 1.2 kV 4H-SiC Power MOSFET

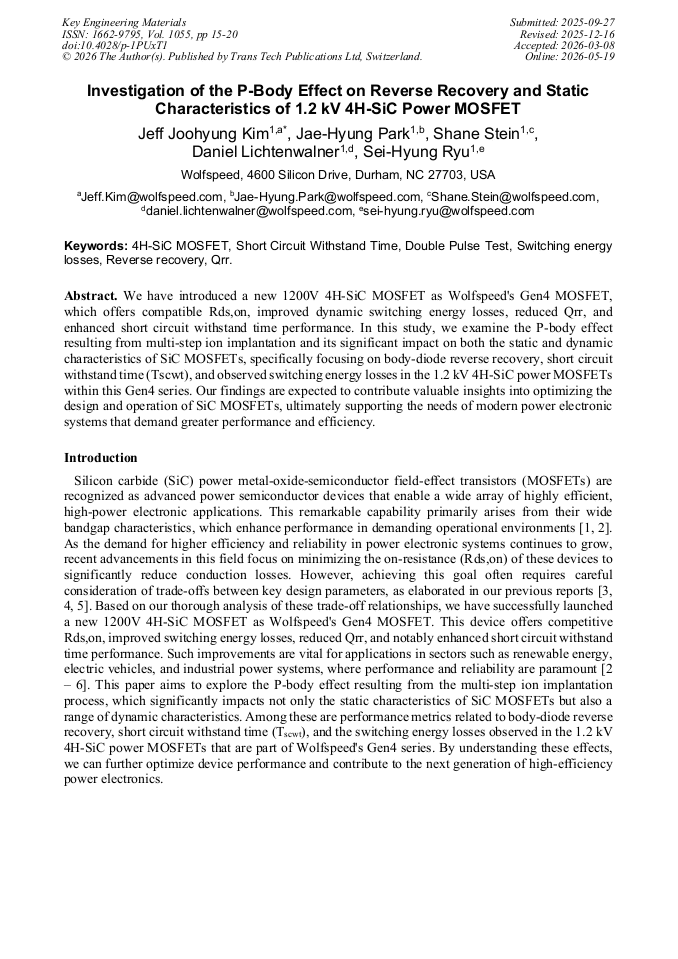

Article Preview
View Pdf By email

Abstract:

We have introduced a new 1200V 4H-SiC MOSFET as Wolfspeed's Gen4 MOSFET, which offers compatible Rds,on, improved dynamic switching energy losses, reduced Qrr, and enhanced short circuit withstand time performance. In this study, we examine the P-body effect resulting from multi-step ion implantation and its significant impact on both the static and dynamic characteristics of SiC MOSFETs, specifically focusing on body-diode reverse recovery, short circuit withstand time (Tscwt), and observed switching energy losses in the 1.2 kV 4H-SiC power MOSFETs within this Gen4 series. Our findings are expected to contribute valuable insights into optimizing the design and operation of SiC MOSFETs, ultimately supporting the needs of modern power electronic systems that demand greater performance and efficiency.

You have full access to the following eBook
Design of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

15-20

DOI:

https://doi.org/10.4028/p-1PUxT1

Citation:

Cite this paper

Online since:

May 2026

Authors:

Jeff Joohyung Kim*, Jae Hyung Park, Shane Stein, Daniel Lichtenwalner, Sei Hyung Ryu

Keywords:

4H-SiC MOSFET, Double Pulse Test, Qrr, Reverse Recovery, Short Circuit Withstand Time, Switching Energy Losses

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. W. Palmour et. al., IEEE ISPSD, 2014, 79-82.

Google Scholar

[2] P. Leteinturier et. al., 32nd ISPSD, 2020, pp.5-9.

Google Scholar

[3] https: //www.wolfspeed.com/products/power/sic-mosfets/e-series-automotive-qualified-sic-mosfets/e4m0013120k/.

Google Scholar

[4] J. Kim et. al., Solid State Phenomena, 2024, Vol. 360, pp.189-193.

Google Scholar

[5] J. Kim et. al., 36th ISPSD, 2024, p.148 – 151.

Google Scholar

[6] S. R. Stein et. Al., 2024 IEEE International Reliability Physics Symposium (IRPS),  pp.1-5.

Google Scholar
