Design of the Robust Edge Termination Applied to 4.5 kV SiC SBD Embedded MOSFET against Humidity

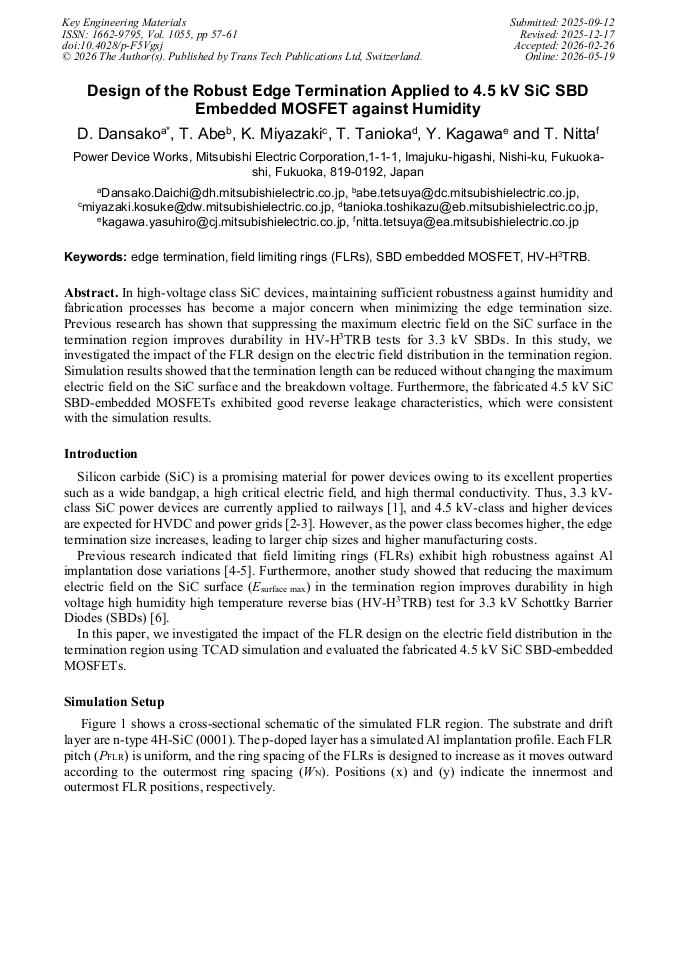

Article Preview
View Pdf By email

Abstract:

In high-voltage class SiC devices, maintaining sufficient robustness against humidity and fabrication processes has become a major concern when minimizing the edge termination size. Previous research has shown that suppressing the maximum electric field on the SiC surface in the termination region improves durability in HV-H3TRB tests for 3.3 kV SBDs. In this study, we investigated the impact of the FLR design on the electric field distribution in the termination region. Simulation results showed that the termination length can be reduced without changing the maximum electric field on the SiC surface and the breakdown voltage. Furthermore, the fabricated 4.5 kV SiC SBD-embedded MOSFETs exhibited good reverse leakage characteristics, which were consistent with the simulation results.

You have full access to the following eBook
Design of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1055)

Pages:

57-61

DOI:

https://doi.org/10.4028/p-F5Vgsj

Citation:

Cite this paper

Online since:

May 2026

Authors:

Daichi Dansako*, Tetsuya Abe, Kosuke Miyazaki, Toshikazu Tanioka, Yasuhiro Kagawa, Tetsuya Nitta

Keywords:

Edge Termination, Field Limiting Rings (FLRs), HV-H3TRB, SBD Embedded MOSFET

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
