Impact of Device Structure on the Performance of Ion-Implanted SiC Phototransistors

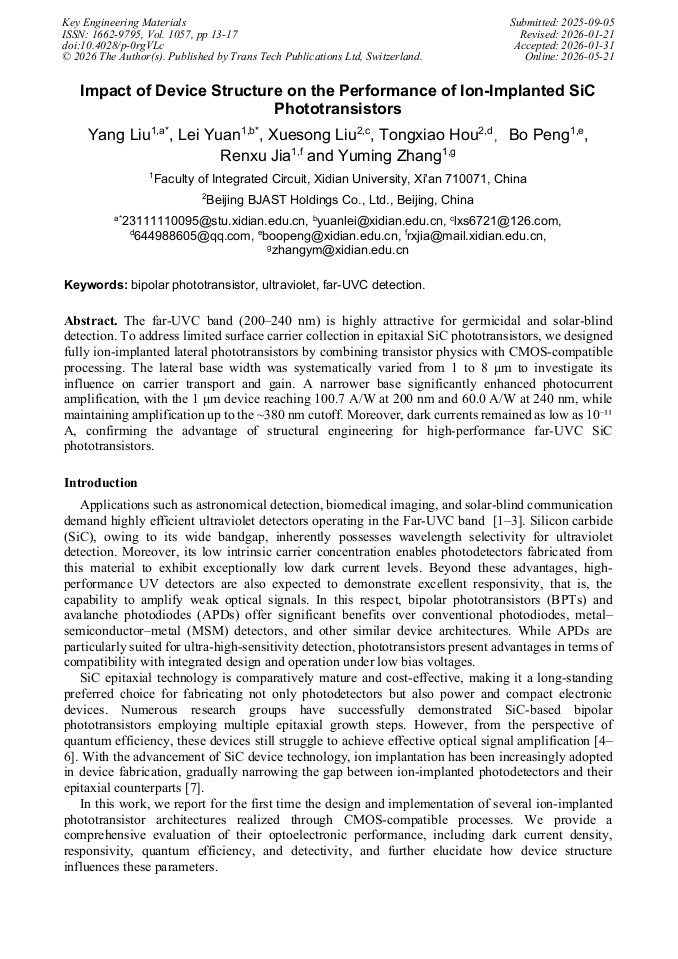

Article Preview
View Pdf By email

Abstract:

The far-UVC band (200–240 nm) is highly attractive for germicidal and solar-blind detection. To address limited surface carrier collection in epitaxial SiC phototransistors, we designed fully ion-implanted lateral phototransistors by combining transistor physics with CMOS-compatible processing. The lateral base width was systematically varied from 1 to 8 μm to investigate its influence on carrier transport and gain. A narrower base significantly enhanced photocurrent amplification, with the 1 μm device reaching 100.7 A/W at 200 nm and 60.0 A/W at 240 nm, while maintaining amplification up to the ~380 nm cutoff. Moreover, dark currents remained as low as 10⁻¹¹ A, confirming the advantage of structural engineering for high-performance far-UVC SiC phototransistors.

You have full access to the following eBook
Performance Analysis of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1057)

Pages:

13-17

DOI:

https://doi.org/10.4028/p-0rgVLc

Citation:

Cite this paper

Online since:

May 2026

Authors:

Yang Liu*, Lei Yuan, Xue Song Liu, Tong Xiao Hou, Bo Peng, Ren Xu Jia, Yu Ming Zhang

Keywords:

Bipolar Phototransistor, Far-UVC Detection, Ultraviolet

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
