Study of Interface Traps and Scattering Mechanisms in the 4H-SiC MOS Channel Using Gated Hall Measurements

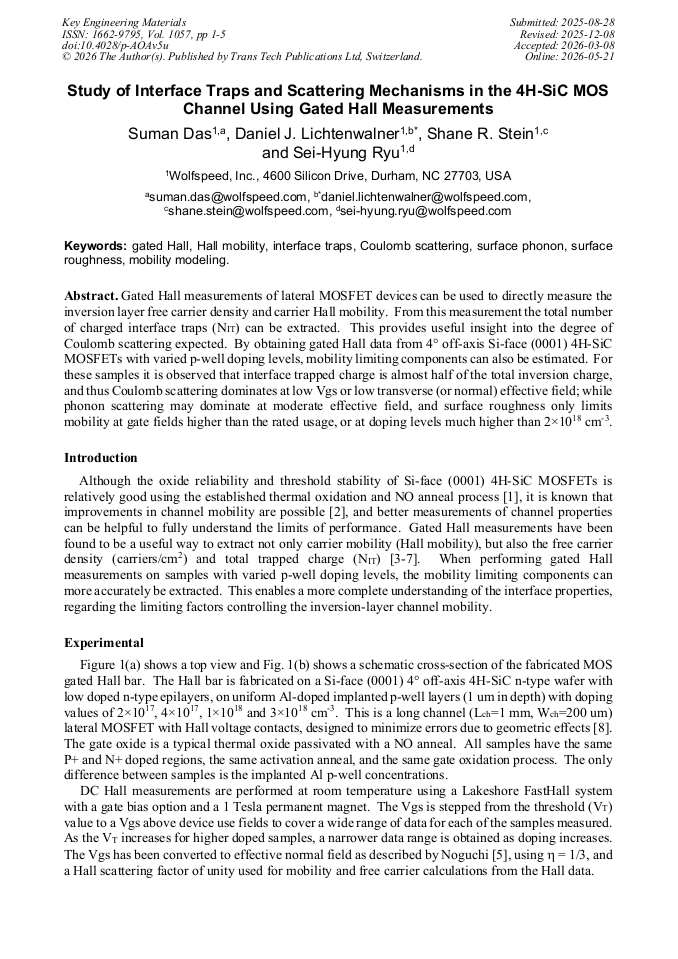

Article Preview
View Pdf By email

Abstract:

Gated Hall measurements of lateral MOSFET devices can be used to directly measure the inversion layer free carrier density and carrier Hall mobility. From this measurement the total number of charged interface traps (NIT) can be extracted. This provides useful insight into the degree of Coulomb scattering expected. By obtaining gated Hall data from 4° off-axis Si-face (0001) 4H-SiC MOSFETs with varied p-well doping levels, mobility limiting components can also be estimated. For these samples it is observed that interface trapped charge is almost half of the total inversion charge, and thus Coulomb scattering dominates at low Vgs or low transverse (or normal) effective field; while phonon scattering may dominate at moderate effective field, and surface roughness only limits mobility at gate fields higher than the rated usage, or at doping levels much higher than 2×1018 cm-3.

You have full access to the following eBook
Performance Analysis of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1057)

Pages:

1-5

DOI:

https://doi.org/10.4028/p-AOAv5u

Citation:

Cite this paper

Online since:

May 2026

Authors:

Suman Das, Daniel J. Lichtenwalner*, Shane R. Stein, Sei Hyung Ryu

Keywords:

Coulomb Scattering, Gated Hall, Hall Mobility, Interface Traps, Mobility Modeling, Surface Phonon, Surface Roughness

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] G.Y. Chung, C.C. Tin, J.R. Williams, K. McDonald, R.K. Chanana, R.A. Weller, S.T. Pantelides, L.C. Feldman, O.W. Holland, M.K. Das, J.W. Palmour, IEEE Elec. Dev. Lett. 22 (2001) pp.176-178.

DOI: 10.1109/55.915604

Google Scholar

[2] D.J. Lichtenwalner, S. Ryu, B. Hull, S. Allen, and J.W. Palmour, Materials Science Forum Vol. 1090 (2022) pp.93-100.

Google Scholar

[3] H. Naik and T.P. Chow, Materials Science Forum Vols. 679-680 (2011) pp.633-636.

Google Scholar

[4] T. Ohashi, Y. Nakabayashi, and R. Iijima, IEEE Trans. Elec. Dev. Vol. 65 (2018) pp.2707-2713.

Google Scholar

[5] M. Noguchi, T. Iwamatsu, H. Amishiro, H. Watanabe, N. Miura, K. Kita, and S. Yamakawa, Jpn. J. Appl. Phys. Vol. 58, 031004 (2019).

DOI: 10.7567/1347-4065/aafc51

Google Scholar

[6] S. Das, Y. Zheng, A. Ahyi, M.A. Kuroda and S. Dhar, MDPI Materials, Vol.15 (2022) pp.19-25.

Google Scholar

[7] S. Das, D.J. Lichtenwalner, S.R. Stein and S. Ryu, ICSCRM 2024 Raleigh NC (in press).

Google Scholar

[8] J. Lindemuth, Hall Effect Measurement Handbook, Lakeshore Cryotronics, Inc. ISBN 978-1-73470-780-9, ed. B. Dodrill (2020).

Google Scholar

[9] S. Takagi et al., IEEE Trans. Electron Dev. 41 (1994) pp.2357-2362.

Google Scholar

[10] S. Potbhare, N. Goldsman, G. Pennington, A. Lelis, and J.M. McGarrity, J. Appl. Phys. 100, 044515 (2006).

Google Scholar
