Investigation of SiC MOSFETs Gate Capacitance Peak with Biased Drain and Its Relation with Transconductance

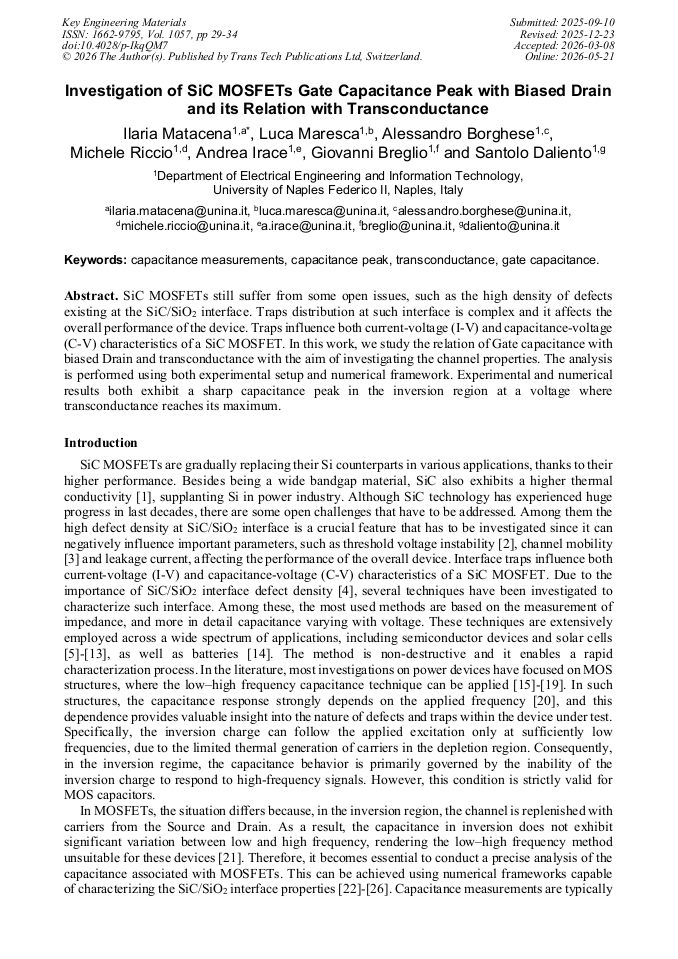

Article Preview

View Pdf By email

Abstract:

SiC MOSFETs still suffer from some open issues, such as the high density of defects existing at the SiC/SiO₂ interface. Traps distribution at such interface is complex and it affects the overall performance of the device. Traps influence both current-voltage (I-V) and capacitance-voltage (C-V) characteristics of a SiC MOSFET. In this work, we study the relation of Gate capacitance with biased Drain and transconductance with the aim of investigating the channel properties. The analysis is performed using both experimental setup and numerical framework. Experimental and numerical results both exhibit a sharp capacitance peak in the inversion region at a voltage where transconductance reaches its maximum.
