Experimental Analysis of 4H-SiC CMOS NOT Logic Gate Down to 100K

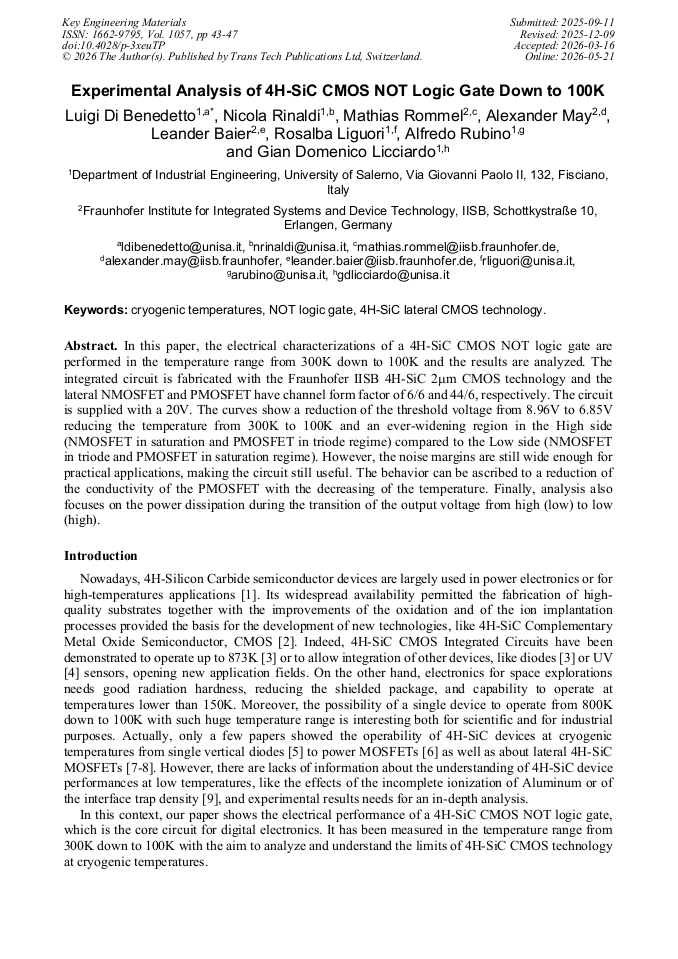

Article Preview
View Pdf By email

Abstract:

In this paper, the electrical characterizations of a 4H-SiC CMOS NOT logic gate are performed in the temperature range from 300K down to 100K and the results are analyzed. The integrated circuit is fabricated with the Fraunhofer IISB 4H-SiC 2μm CMOS technology and the lateral NMOSFET and PMOSFET have channel form factor of 6/6 and 44/6, respectively. The circuit is supplied with a 20V. The curves show a reduction of the threshold voltage from 8.96V to 6.85V reducing the temperature from 300K to 100K and an ever-widening region in the High side (NMOSFET in saturation and PMOSFET in triode regime) compared to the Low side (NMOSFET in triode and PMOSFET in saturation regime). However, the noise margins are still wide enough for practical applications, making the circuit still useful. The behavior can be ascribed to a reduction of the conductivity of the PMOSFET with the decreasing of the temperature. Finally, analysis also focuses on the power dissipation during the transition of the output voltage from high (low) to low (high).

You have full access to the following eBook
Performance Analysis of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1057)

Pages:

43-47

DOI:

https://doi.org/10.4028/p-3xeuTP

Citation:

Cite this paper

Online since:

May 2026

Authors:

Luigi di Benedetto*, Nicola Rinaldi, Mathias Rommel, Alexander May, Leander Baier, Rosalba Liguori, Alfredo Rubino, Gian Domenico Licciardo

Keywords:

4H-SiC Lateral CMOS Technology, Cryogenic Temperatures, NOT Logic Gate

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] P. G. Neudeck, D. J. Spry, L. Chen, N. F. Prokop, and M. J. Krasowski, Demonstration of 4h-sic digital integrated circuits above 800°C, IEEE Electron Device Letters, 38 (2017) 8, 1082–1085.

DOI: 10.1109/led.2017.2719280

Google Scholar

[2] "Fraunhofer Institute for Integrated Systems and Device Technology (IISB)," https://www.iisb.fraunhofer.de/.

Google Scholar

[3] J. Mo, J. Li, Y. Zhang, J. Romijn, A. May, T. Erlbacher, and S. Vollebregt, A highly linear temperature sensor operating up to 600° C in a 4H-SiC CMOS technology. IEEE Electron Device Letters, 44 (2023) 6, 995-998.

DOI: 10.1109/led.2023.3268334

Google Scholar

[4] L. Di Benedetto, G.D. Licciardo, T. Erlbacher, A.J. Bauer, and A. Rubino, A 4H-SiC UV phototransistor with excellent optical gain based on controlled potential barrier, IEEE Transactions on Electron Devices, 67 (2019) 1, 154-159.

DOI: 10.1109/ted.2019.2950986

Google Scholar

[5] C. D. Matthus, L. Di Benedetto, M. Kocher, A. J. Bauer, G. D. Licciardo, A. Rubino, and T. Erlbacher, Feasibility of 4H-SiC p-i-n Diode for Sensitive Temperature Measurements Between 20.5 K and 802 K, IEEE Sensors Journal 19 (2019) 8, 2871-2878.

DOI: 10.1109/jsen.2019.2891293

Google Scholar

[6] Y. Wei, M.M. Hossain, and H. A. Mantooth. Comparisons and evaluations of silicon and wide band gap devices at cryogenic temperature, IEEE Transactions on Industry Applications 59 (2022) 2, 1982-1994.

DOI: 10.1109/tia.2022.3225370

Google Scholar

[7] N. Rinaldi, M. Rommel, A. May, R. Liguori, A. Rubino, G.D. Licciardo, and L. Di Benedetto, Analysis of a 4H-SiC lateral PMOSFET temperature sensor between 14K-482K. IEEE Sensors Letters, 9 (2025) 3, 2501504.

DOI: 10.1109/lsens.2025.3544712

Google Scholar

[8] N. Rinaldi, M. Rommel, A. May, R. Liguori, A. Rubino, G. D. Licciardo, L. Di Benedetto, A 4H-SiC NMOSFET-based temperature sensor operating between 14K and 481K, IEEE Electron Device Letters, 45 (2024) 11.

DOI: 10.1109/led.2024.3459049

Google Scholar

[9] L. Di Benedetto, N. Rinaldi, G.D. Licciardo, R. Liguori, A. Rubino, A. May, and M. Rommel, Performance and Understanding of 4H-SiC Electron Devices at Low Temperature Range. 2024 IEEE International Semiconductor Conference (2023) 23-28.

DOI: 10.1109/cas62834.2024.10736847

Google Scholar

[10] Information on https://www.attocube.com.

Google Scholar

[11] Information on https://www.lakeshore.com.

Google Scholar

[12] X. Chi, K. Tachiki, K. Mikami, M. Kaneko, and T. Kimoto, Different temperature dependence of mobility in n-and p-channel 4H-SiC MOSFETs. Japanese Journal of Applied Physics, 62 (2023), 110906.

DOI: 10.35848/1347-4065/ad0799

Google Scholar

[13] R. M. Fox, and R.C. JAEGER, MOSFET behavior and circuit considerations for analog applications at 77 K. IEEE Transactions on electron Devices, 34 (1987) 1, 114-123.

DOI: 10.1109/t-ed.1987.22893

Google Scholar
