Impact of Active Cell Geometry on the Static Performance of 10-kV 4H-SiC JBS (Junction Barrier Schottky) Diodes

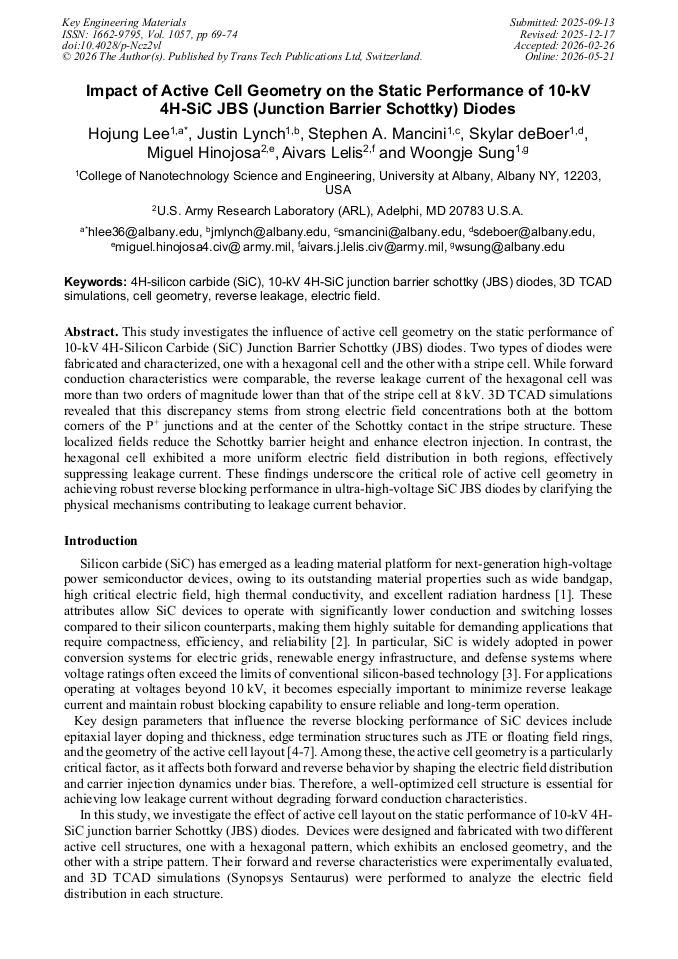

Article Preview
View Pdf By email

Abstract:

This study investigates the influence of active cell geometry on the static performance of 10-kV 4H-Silicon Carbide (SiC) Junction Barrier Schottky (JBS) diodes. Two types of diodes were fabricated and characterized, one with a hexagonal cell and the other with a stripe cell. While forward conduction characteristics were comparable, the reverse leakage current of the hexagonal cell was more than two orders of magnitude lower than that of the stripe cell at 8 kV. 3D TCAD simulations revealed that this discrepancy stems from strong electric field concentrations both at the bottom corners of the P+ junctions and at the center of the Schottky contact in the stripe structure. These localized fields reduce the Schottky barrier height and enhance electron injection. In contrast, the hexagonal cell exhibited a more uniform electric field distribution in both regions, effectively suppressing leakage current. These findings underscore the critical role of active cell geometry in achieving robust reverse blocking performance in ultra-high-voltage SiC JBS diodes by clarifying the physical mechanisms contributing to leakage current behavior.

You have full access to the following eBook
Performance Analysis of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1057)

Pages:

69-74

DOI:

https://doi.org/10.4028/p-Ncz2vl

Citation:

Cite this paper

Online since:

May 2026

Authors:

Hojung Lee*, Justin Lynch, Stephen A. Mancini, Skylar deBoer, Miguel Hinojosa, Aivars Lelis, Woongje Sung

Keywords:

10-kV 4H-SiC Junction Barrier Schottky (JBS) Diodes, 3D TCAD Simulation, 4H-Silicon Carbide (SiC), Cell Geometry, Electric Field, Reverse Leakage

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] T. Kimoto and J. A. Cooper, Fundamentals of silicon carbide technology: growth, characterization, devices and applications., John Wiley & Sons, 2014.

DOI: 10.1002/9781118313534

Google Scholar

[2] S. Y. Jang, J. Kim, H. Lee and K. S. Kim, "Improved on-state resistance with reliable reverse characteristics in 1.2kV 4H-SiC MOSFET by selective nitrogen implantation assisted current spreading layer", Japanese Journal of Applied Physics, vol. 59, no. 4, May 2022.

DOI: 10.35848/1347-4065/ab7bb0

Google Scholar

[3] R. J. Callanan, A. Agarwal, A. Burk, M. Das, B. Hull, F. Husna, A. Powell, J. Richmond, S. Ryu and Q. Zhang, "Recent Progress in SiC DMOSFETs and JBS Diodes at Cree", in Proc. IEEE Annu. Conf. Ind. Electron., p.2885–2890, 2008.

DOI: 10.1109/iecon.2008.4758417

Google Scholar

[4] A. Mihaila, R. A. Minamisawa, L. Knoll, V. K. Sundaramoorthy, E. Bianda, H. Bartolf, G. Alfieri, M. Rahimo, "On the Influence of Active Area Design on the Performance of SiC JBS Diodes", Mater. Sci. Forum, vols. 897, p.471–474, May 2017.

DOI: 10.4028/www.scientific.net/msf.897.471

Google Scholar

[5] L. Liu, J. Wu, H. Xu, Z. Zhu, N. Ren, J. Zhang, K. Sheng, "The Impact of the Hexagonal and Circular Cell Designs on the Characteristics and Ruggedness for 4H-SiC MPS Diodes", IEEE Trans. Electron Devices, vol. 69, no. 3, p.1226–1232, Mar 2022.

DOI: 10.1109/ted.2022.3146113

Google Scholar

[6] B. Asllani, H. Morel, L.V. Phung, D. Planson, "10 kV Silicon Carbide PiN Diodes—From Design to Packaged Component Characterization", Energies 12(23), 4566, 2019.

DOI: 10.3390/en12234566

Google Scholar

[7] J. Lynch, N. Yun and W. Sung, "Design Considerations for High Voltage SiC Power Devices: An Experimental Investigation into Channel Pinching of 10kV SiC Junction Barrier Schottky (JBS) Diodes", in Proc. 31st Int. Symp. Power Semiconductor Devices ICs (ISPSD), p.223–226, May 2019.

DOI: 10.1109/ispsd.2019.8757593

Google Scholar

[8] S. A. Mancini, S. Y. Jang, D. Kim and W. Sung, "Increased 3rd Quadrant Current Handling Capability of 1.2kV 4H-SiC JBS Diode-Integrated MOSFETs (JBSFETs) with Minimal Impact on the Forward Conduction and Blocking Performances", in Proc. IEEE 8th Workshop on Wide Bandgap Power Devices and Applications (WiPDA), pp.101-106, 2021.

DOI: 10.1109/wipda49284.2021.9645152

Google Scholar
