Optical Critical Dimension Metrology for the SiC Trench MOSFET Process

Article Preview

Abstract:

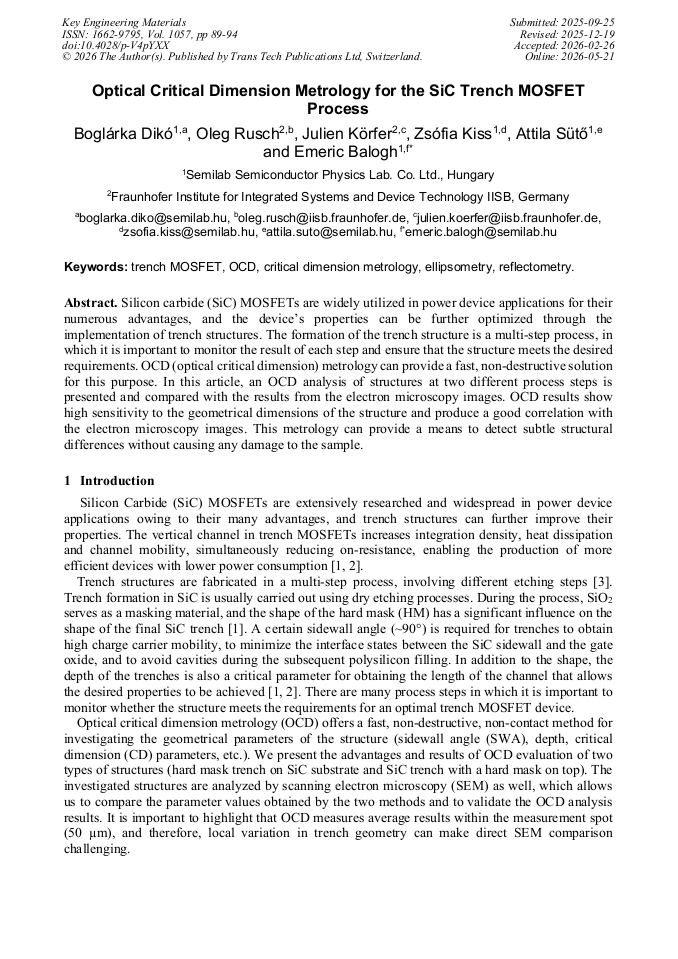

Silicon carbide (SiC) MOSFETs are widely utilized in power device applications for their numerous advantages, and the device’s properties can be further optimized through the implementation of trench structures. The formation of the trench structure is a multi-step process, in which it is important to monitor the result of each step and ensure that the structure meets the desired requirements. OCD (optical critical dimension) metrology can provide a fast, non-destructive solution for this purpose. In this article, an OCD analysis of structures at two different process steps is presented and compared with the results from the electron microscopy images. OCD results show high sensitivity to the geometrical dimensions of the structure and produce a good correlation with the electron microscopy images. This metrology can provide a means to detect subtle structural differences without causing any damage to the sample.
