Body Diode Performance of the 4H-SiC 3.3 kV Semi-SJ MOSFET

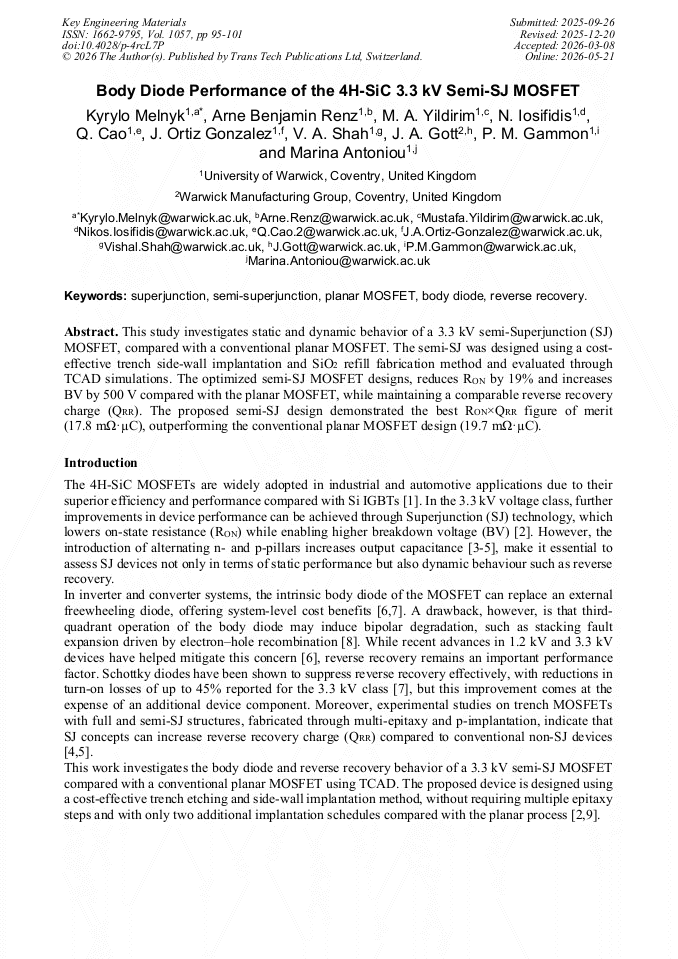

Article Preview
View Pdf By email

Abstract:

This study investigates static and dynamic behavior of a 3.3 kV semi-Superjunction (SJ) MOSFET, compared with a conventional planar MOSFET. The semi-SJ was designed using a cost-effective trench side-wall implantation and SiO2 refill fabrication method and evaluated through TCAD simulations. The optimized semi-SJ MOSFET designs, reduces RON by 19% and increases BV by 500 V compared with the planar MOSFET, while maintaining a comparable reverse recovery charge (QRR). The proposed semi-SJ design demonstrated the best RON×QRR figure of merit (17.8 mΩ·µC), outperforming the conventional planar MOSFET design (19.7 mΩ·µC).

You have full access to the following eBook
Performance Analysis of SiC Power Devices Read eBook

Info:

Periodical:

Key Engineering Materials (Volume 1057)

Pages:

95-101

DOI:

https://doi.org/10.4028/p-4rcL7P

Citation:

Cite this paper

Online since:

May 2026

Authors:

Kyrylo Melnyk*, Arne Benjamin Renz, Mustafa Akif Yildirim, Nikolaos Iosifidis, Qin Ze Cao, Jose Ortiz-Gonzalez, Vishal A. Shah, James A. Gott, Peter Michael Gammon, Marina Antoniou

Keywords:

Body Diode, Planar MOSFET, Reverse Recovery, Semi-Superjunction, Superjunction (SJ)

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author
