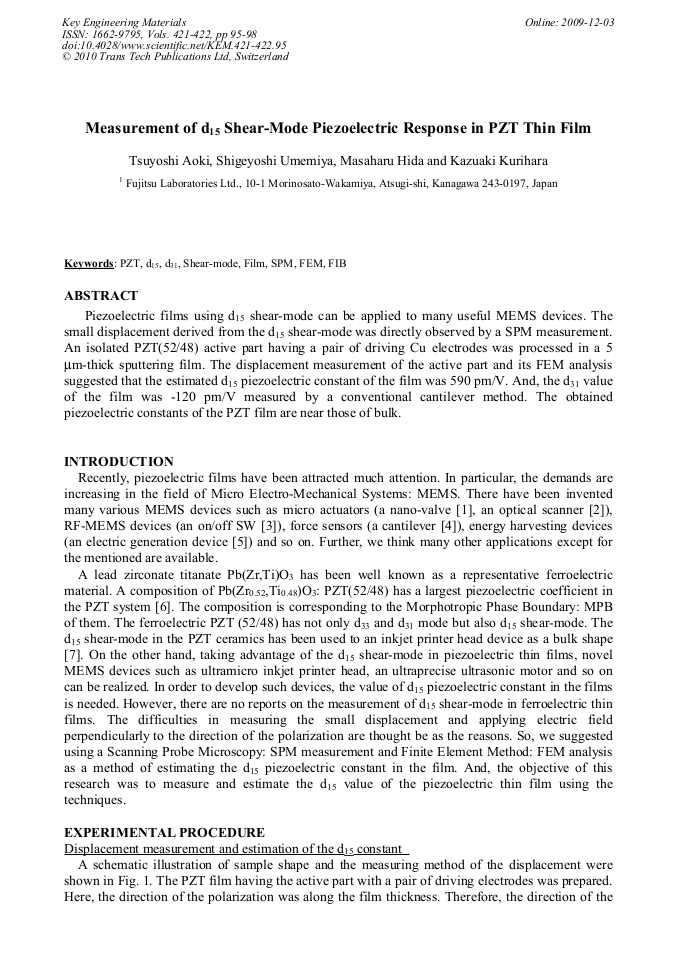

Measurement of d₁₅ Shear-Mode Piezoelectric Response in PZT Thin Film

Abstract:

Piezoelectric films using d15 shear-mode can be applied to many useful MEMS devices. The small displacement derived from the d15 shear-mode was directly observed by a SPM measurement. An isolated PZT(52/48) active part having a pair of driving Cu electrodes was processed in a 5 m-thick sputtering film. The displacement measurement of the active part and its FEM analysis suggested that the estimated d15 piezoelectric constant of the film was 590 pm/V. And, the d31 value of the film was -120 pm/V measured by a conventional cantilever method. The obtained piezoelectric constants of the PZT film are near those of bulk.
