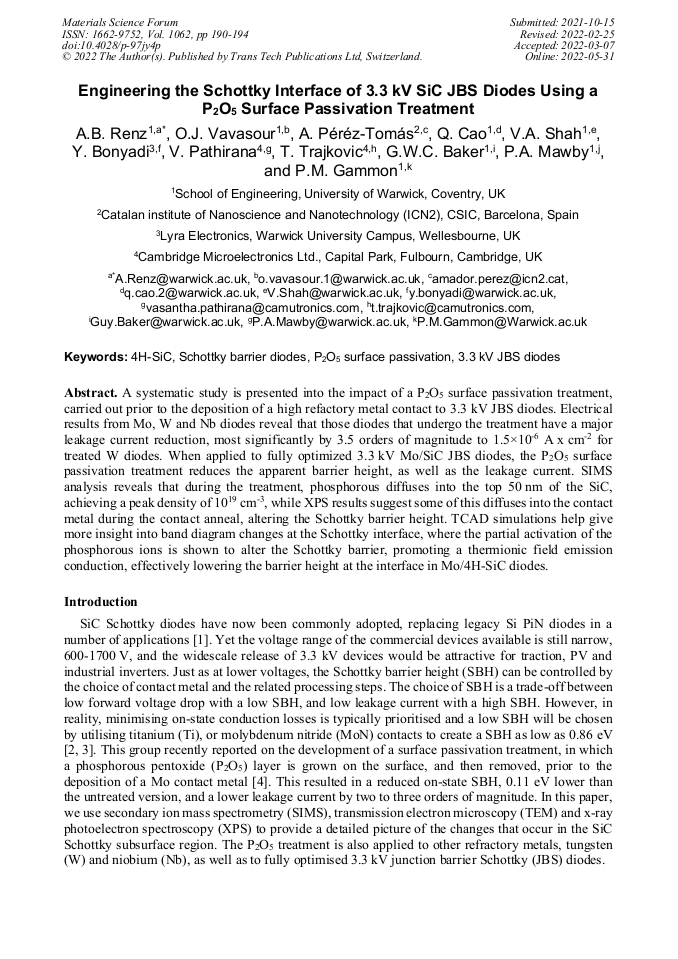

Engineering the Schottky Interface of 3.3 kV SiC JBS Diodes Using a P₂O₅ Surface Passivation Treatment

Abstract:

A systematic study is presented into the impact of a P₂O₅ surface passivation treatment, carried out prior to the deposition of a high refactory metal contact to 3.3 kV JBS diodes. Electrical results from Mo, W and Nb diodes reveal that those diodes that undergo the treatment have a major leakage current reduction, most significantly by 3.5 orders of magnitude to 1.5×10^-6 A.cm^-2 for treated W diodes. When applied to fully optimized 3.3 kV Mo/SiC JBS diodes, the P₂O₅ surface passivation treatment reduces the apparent barrier height, as well as the leakage current. SIMS analysis reveals that during the treatment, phosphorous diffuses into the top 10 nm of the SiC, achieving a peak density of 10¹⁹ cm^-3, while XPS results suggest some of this diffuses into the contact metal during the contact anneal, altering the SBH. TCAD simulations help give more insight into band diagram changes at the Schottky interface, where the partial activation of the phosphorous ions is shown to alter the Schottky barrier, promoting a thermionic field emission conduction, effectively lowering the barrier height at the interface in Mo/4H-SiC diodes.
