Comparative Performance Evaluation of Conventional and Superjunction Vertical 4H-SiC High-Voltage Power MOSFETs

Abstract:

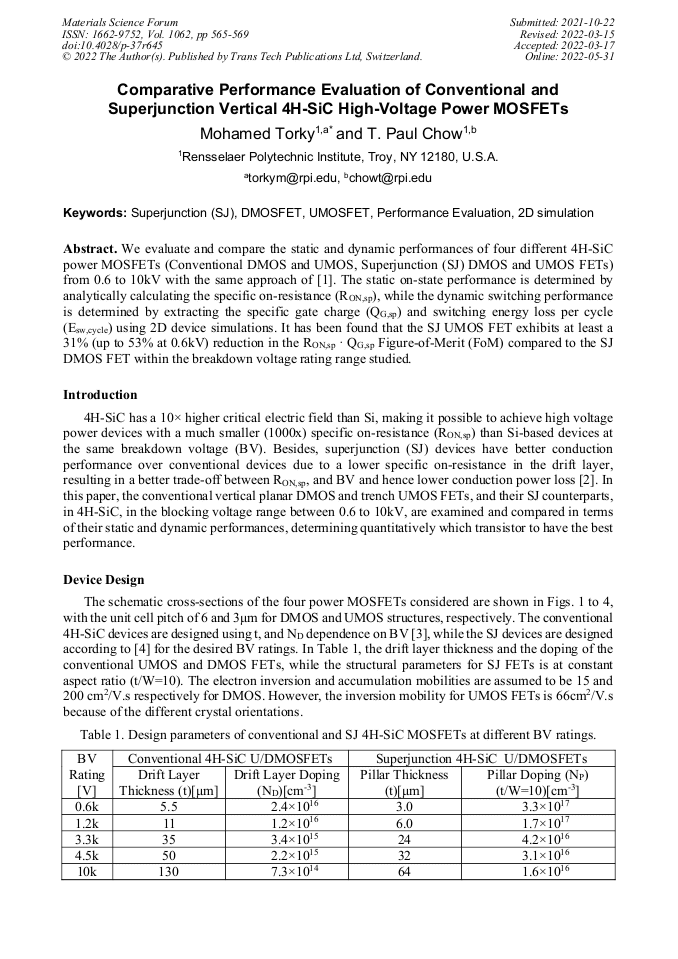

We evaluate and compare the static and dynamic performances of four different 4H-SiC power MOSFETs (Conventional DMOS and UMOS, Superjunction (SJ) DMOS and UMOS FETs) from 0.6 to 10kV. The static on-state performance is determined by analytically calculating the specific on-resistance (R_ON_,sp), while the dynamic switching performance is determined by extracting the specific gate charge (Q_G,sp) and switching energy loss per cycle (E_sw,cycle) using 2D device simulations. It has been found that the SJ UMOS FET exhibits at least a 31% (up to 53% at 0.6kV) reduction in the R_ON,sp · Q_G,sp Figure-of-Merit (FoM) compared to the SJ DMOS FET within the breakdown voltage rating range studied.
