Edge Termination Design for Ultra High-Voltage (>10 kV) 4H-SiC Power Devices Using Background Doping Modulation (BDM)

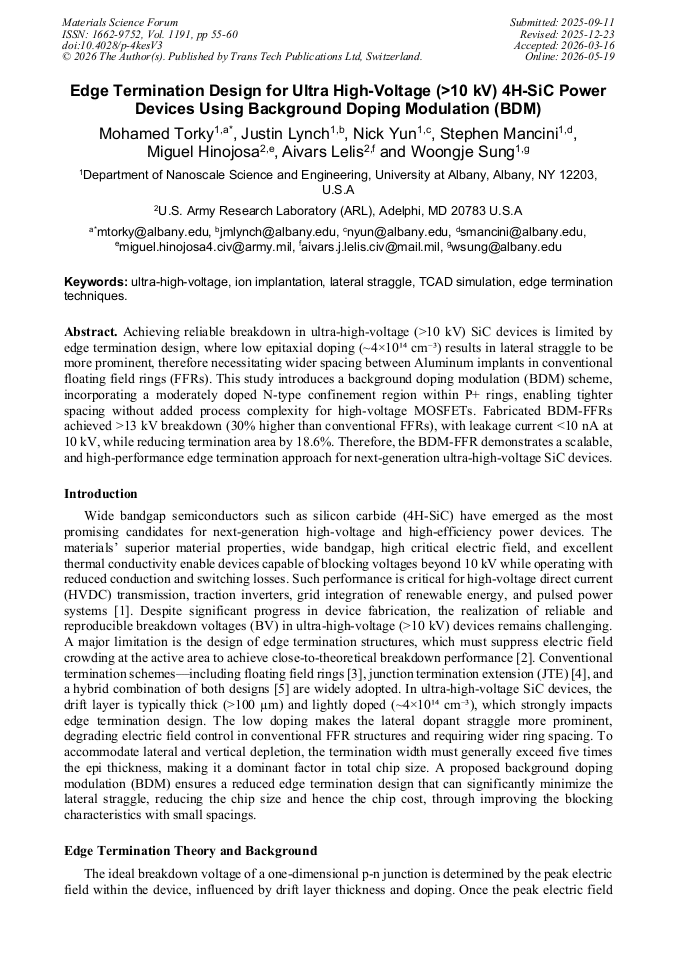

Article Preview
View Pdf By email

Abstract:

Achieving reliable breakdown in ultra-high-voltage (>10 kV) SiC devices is limited by edge termination design, where low epitaxial doping (~4×10¹⁴ cm⁻³) results in lateral straggle to be more prominent, therefore necessitating wider spacing between Aluminum implants in conventional floating field rings (FFRs). This study introduces a background doping modulation (BDM) scheme, incorporating a moderately doped N-type confinement region within P+ rings, enabling tighter spacing without added process complexity for high-voltage MOSFETs. Fabricated BDM-FFRs achieved >13 kV breakdown (30% higher than conventional FFRs), with leakage current <10 nA at 10 kV, while reducing termination area by 18.6%. Therefore, the BDM-FFR demonstrates a scalable, compact, and high-performance edge termination approach for next-generation ultra-high-voltage SiC devices.

You have full access to the following eBook
Material Characterisation and Devices Processing Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1191)

Pages:

55-60

DOI:

https://doi.org/10.4028/p-4kesV3

Citation:

Cite this paper

Online since:

May 2026

Authors:

Mohamed Torky*, Justin Lynch, Nick Yun, Stephen Mancini, Miguel Hinojosa, Aivars Lelis, Woongje Sung

Keywords:

Edge Termination Techniques, Ion Implantation, Lateral Straggle, TCAD Simulation, Ultra-High-Voltage

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J.B. Casady, R.W. Johnson, Status of silicon carbide (SiC) as a wide-bandgap semiconductor for high-temperature applications: A review, Solid-State Electronics 39 (10) (1996) 1409-1422.

DOI: 10.1016/0038-1101(96)00045-7

Google Scholar

[2] B. J. Baliga, Fundamentals of Power Semiconductor Devices. New York, NY, USA: Springer, 2008, Chap. 3, p.91–162.

Google Scholar

[3] M.S. Adler, V.A.K. Temple, A. P. Ferro, R. C. Ruslay, Theory and breakdown voltage for planar devices with a single field limiting ring, IEEE Transaction on Electron Devices, 24 (2) (1977). 107-113.

DOI: 10.1109/t-ed.1977.18688

Google Scholar

[4] W. Sung, E. V. Brunt, B. J. Baliga, A. Q. Huang, A New Edge Termination Technique for High-Voltage Devices in 4H-SiC–Multiple-Floating-Zone Junction Termination Extension, IEEE Transaction on Electron Devices, 32 (7) (2011) 880-882.

DOI: 10.1109/led.2011.2144561

Google Scholar

[5] W. Sung, B. J. Baliga, A Near Ideal Edge Termination Technique for 4500V 4H-SiC Devices: the Hybrid Junction Termination Extension (Hybrid-JTE), IEEE Transaction on Electron Devices, 37 (12) (2016) 1609-1612.

DOI: 10.1109/led.2016.2623423

Google Scholar

[6] J. Lynch, N. Yun, W. Sung, Design Considerations for High Voltage SiC Power Devices: An Experimental Investigation into Channel Pinching of 10kV SiC Junction Barrier Schottky (JBS) Diodes, 31st International Symposium on Power Semiconductor Devices and ICs (ISPSD), Shanghai, China, (2019) 223-226.

DOI: 10.1109/ispsd.2019.8757593

Google Scholar

[7] N. Yun, D. Kim, J. Lynch, A. J. Morgan, W. Sung, M. Kang, A. Agarwal, R. Green, A. Lelis, Developing 13-kV 4H-SiC MOSFETs: Significance of Implant Straggle, Channel Design, and MOS Process on Static Performance, IEEE Transaction on Electron Devices, 67 (10) (2020) 4346-4353.

DOI: 10.1109/ted.2020.3017150

Google Scholar
