20 kV 4H-SiC N-IGBTs

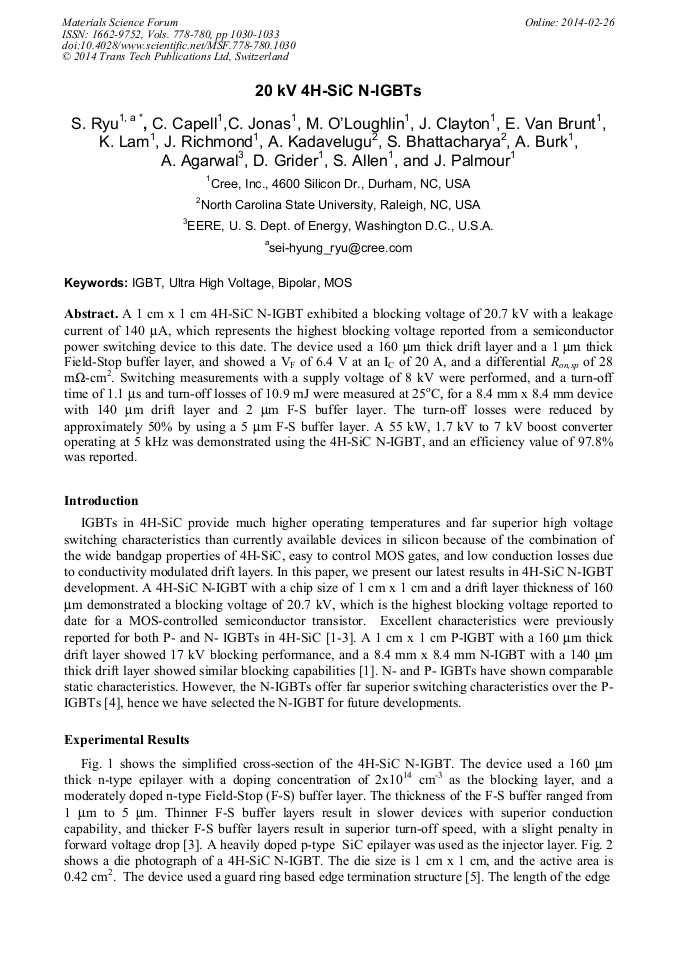

Abstract:

A 1 cm x 1 cm 4H-SiC N-IGBT exhibited a blocking voltage of 20.7 kV with a leakage current of 140 μA, which represents the highest blocking voltage reported from a semiconductor power switching device to this date. The device used a 160 μm thick drift layer and a 1 μm thick Field-Stop buffer layer, and showed a V_F of 6.4 V at an I_C of 20 A, and a differential R_on,sp of 28 mΩ-cm². Switching measurements with a supply voltage of 8 kV were performed, and a turn-off time of 1.1 μs and turn-off losses of 10.9 mJ were measured at 25°C, for a 8.4 mm x 8.4 mm device with 140 μm drift layer and 2 μm F-S buffer layer. The turn-off losses were reduced by approximately 50% by using a 5 μm F-S buffer layer. A 55 kW, 1.7 kV to 7 kV boost converter operating at 5 kHz was demonstrated using the 4H-SiC N-IGBT, and an efficiency value of 97.8% was reported.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2013

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 778-780)

Pages:

1030-1033

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.778-780.1030

Citation:

Cite this paper

Online since:

February 2014

Authors:

Sei Hyung Ryu*, Craig Capell, Charlotte Jonas, Michael J. O'Loughlin, Jack Clayton, Edward van Brunt, Khiem Lam, Jim Richmond, Arun Kadavelugu, Subhashish Bhattacharya, Albert A. Burk, Anant Agarwal, Dave Grider, Scott T. Allen, John W. Palmour

Keywords:

Bipolar, IGBT, MOS, Ultra-High Voltage (UHV)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Ryu et al., Materials Science Forum Vols. 740-742 (2013), pp.954-957, Trans Tech Publications, Switzerland.

Google Scholar

[2] S. Katakami et al., Materials Science Forum Vols. 740-742 (2013), pp.958-961, Trans Tech Publications, Switzerland.

Google Scholar

[3] S. Ryu et al., Proceedings of the 2012 24th International Symposium on Power Semiconductor Devices and ICs, 3-7 June 2012, Bruges, Belgium, pp.257-260.

Google Scholar

[4] S. Ryu et al., Materials Science Forum Vols. 717-720 (2012), pp.1135-1138, Trans Tech Publications, Switzerland.

Google Scholar

[5] U.S. patent 7, 026, 650.
