Device Performance and Switching Characteristics of 16 kV Ultrahigh-Voltage SiC Flip-Type n-Channel IE-IGBTs

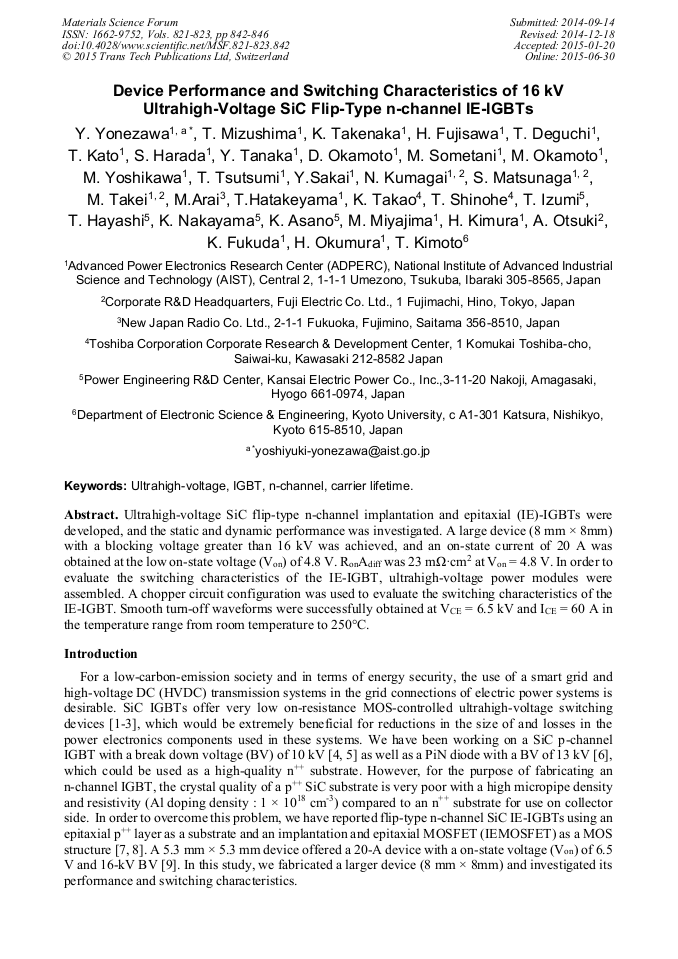

Article Preview

Abstract:

Ultrahigh-voltage SiC flip-type n-channel implantation and epitaxial (IE)-IGBTs were developed, and the static and dynamic performance was investigated. A large device (8 mm × 8mm) with a blocking voltage greater than 16 kV was achieved, and an on-state current of 20 A was obtained at the low on-state voltage (Von) of 4.8 V. RonAdiff was 23 mΩ·cm2 at Von = 4.8 V. In order to evaluate the switching characteristics of the IE-IGBT, ultrahigh-voltage power modules were assembled. A chopper circuit configuration was used to evaluate the switching characteristics of the IE-IGBT. Smooth turn-off waveforms were successfully obtained at VCE = 6.5 kV and ICE = 60 A in the temperature range from room temperature to 250°C.
