Very High Sustainable Forward Current Densities on 4H-SiC p-n Junctions Formed by VLS Localized Epitaxy of Heavily Al-Doped p++ Emitters

Abstract:

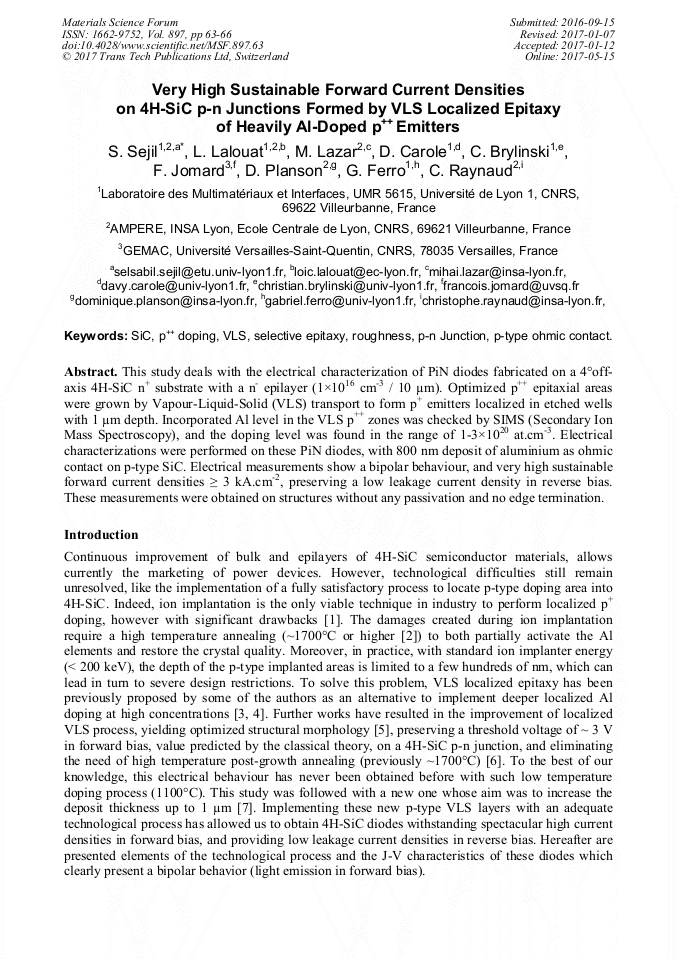

Article Preview

This study deals with the electrical characterization of PiN diodes fabricated on a 4°off-axis 4H-SiC n+ substrate with a n- epilayer (1×1016 cm-3 / 10 µm). Optimized p++ epitaxial areas were grown by Vapour-Liquid-Solid (VLS) transport to form p+ emitters localized in etched wells with 1 µm depth. Incorporated Al level in the VLS p++ zones was checked by SIMS (Secondary Ion Mass Spectroscopy), and the doping level was found in the range of 1-3×1020 at.cm-3. Electrical characterizations were performed on these PiN diodes, with 800 nm deposit of aluminium as ohmic contact on p-type SiC. Electrical measurements show a bipolar behaviour, and very high sustainable forward current densities ≥ 3 kA.cm-2, preserving a low leakage current density in reverse bias. These measurements were obtained on structures without any passivation and no edge termination.

Info:

Periodical:

Edited by:

Konstantinos Zekentes, Konstantin V. Vasilevskiy and Nikolaos Frangis

Pages:

63-66

DOI:

10.4028/www.scientific.net/MSF.897.63

Citation:

S. Sejil et al., "Very High Sustainable Forward Current Densities on 4H-SiC p-n Junctions Formed by VLS Localized Epitaxy of Heavily Al-Doped p++ Emitters", Materials Science Forum, Vol. 897, pp. 63-66, 2017

Online since:

May 2017

Export:

Price:

$35.00

* - Corresponding Author

[1] V. Heera, A. Mucklich, C. Dubois, M. Voelskow, W. Skorupa, J. of App. Phy., Vol. 96 (2004) pp.2841-2852.

[2] M. Lazar, C. Raynaud, D. Planson, M.L. Locatelli, K. Isoird, L. Ottaviani, J.P. Chante, R. Nipoti, A. Poggi, G. Cardinali, Mater. Sci. Forum, Vols. 389-393 (2002) pp.827-830.

DOI: 10.4028/www.scientific.net/msf.389-393.827

[3] D. Carole, S. Berckmans, A. Vo-Ha, M. Lazar, D. Tournier, P. Brosselard, V. Souliere, L. Auvray, G. Ferro, C. Brylinski, Silicon Carbide and Related Materials 2011, 717-720 (2012) 169-172.

DOI: 10.4028/www.scientific.net/msf.717-720.169

[4] A. Vo-Ha, D. Carole, M. Lazar, D. Tournier, F. Cauwet, V. Soulière, N. Thierry-Jebali, P. Brosselard, D. Planson, C. Brylinski, G. Ferro, Thin Solid Films, Vol. 548 (2013) pp.125-129.

DOI: 10.1016/j.tsf.2013.09.030

[5] S. Sejil, M. Lazar, F. Cayrel, D. Carole, C. Brylinski, D. Planson, G. Ferro, C. Raynaud, Mater. Sci. Forum, Vol. 858 (2016) pp.205-208.

DOI: 10.4028/www.scientific.net/msf.858.205

[6] N. Thierry-Jebali, M. Lazar, A. Vo-Ha, D. Carole, V. Souliere, F. Laariedh, J. ul Hassan, A. Henry, E. Janzen, D. Planson, G. Ferro, C. Brylinski, P. Brosselard, Mater. Sci. Forum, Vols. 740-742 (2013) pp.911-914.

DOI: 10.4028/www.scientific.net/msf.740-742.911

[7] S. Sejil, M. Lazar, D. Carole, C. Brylinski, D. Planson, G. Ferro, C. Raynaud, Phys. Status Solidi A, DOI 10. 1002/pssa. 201600454 (2016).
