Optimization of Seed Crystal Stability at the Initial Growth Stage Depending on Heating Ramp Rates and Gas Flow Channels of SiC Source Powder for Growth of 8-inch N- Type 4H-SiC Single Crystal

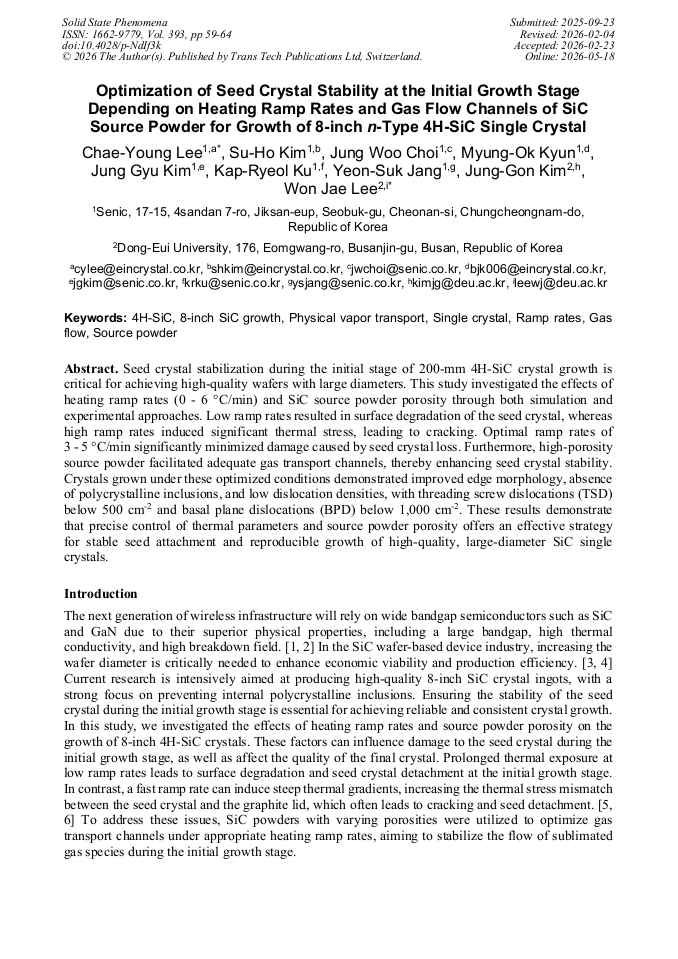

Article Preview
View Pdf By email

Abstract:

Seed crystal stabilization during the initial stage of 200-mm 4H-SiC crystal growth is critical for achieving high-quality wafers with large diameters. This study investigated the effects of heating ramp rates (0 - 6 °C/min) and SiC source powder porosity through both simulation and experimental approaches. Low ramp rates resulted in surface degradation of the seed crystal, whereas high ramp rates induced significant thermal stress, leading to cracking. Optimal ramp rates of 3 - 5 °C/min significantly minimized damage caused by seed crystal loss. Furthermore, high-porosity source powder facilitated adequate gas transport channels, thereby enhancing seed crystal stability. Crystals grown under these optimized conditions demonstrated improved edge morphology, absence of polycrystalline inclusions, and low dislocation densities, with threading screw dislocations (TSD) below 500 cm-2 and basal plane dislocations (BPD) below 1,000 cm-2. These results demonstrate that precise control of thermal parameters and source powder porosity offers an effective strategy for stable seed attachment and reproducible growth of high-quality, large-diameter SiC single crystals.

You have full access to the following eBook
Bulk and Epitaxial Growth of SiC Read eBook

Info:

Periodical:

Solid State Phenomena (Volume 393)

Pages:

59-64

DOI:

https://doi.org/10.4028/p-NdIf3k

Citation:

Cite this paper

Online since:

May 2026

Authors:

Chae Young Lee, Su Ho Kim, Jung Woo Choi, Myung Ok Kyun, Jung Gyu Kim, Kap Ryeol Ku, Yeon Suk Jang, Jung Gon Kim, Won Jae Lee*

Keywords:

4H-SiC, 8-Inch SiC Growth, Gas Flow, Physical Vapor Transport, Ramp Rates, Single Crystal, Source Powder

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] J. R. Jenny, D. P. Malta, St G. Müller, A. R. Powell, V. F. Tsvetkov, H. McD Hobgood, R. C. Glass, C. H. Carter Jr., Journal of Electronic Materials, 32, 432-436 (2003).

DOI: 10.1007/s11664-003-0173-4

Google Scholar

[2] M. V. S. Chandrashekhar, I. Chowdhury, P. Kaminski, R. Kozlowski, P. B. Klein and T. Sudarshan, Applied Physics express 5, 025502 (2012).

DOI: 10.1143/apex.5.025502

Google Scholar

[3] I. Manning, K. Moeggenborg, A. Soukhojak, J. Searson, M. Gave, G. Chung, E. Sanchez, Materials Science Forum, 1062, 54-58 (2022).

DOI: 10.4028/p-3iz201

Google Scholar

[4] S. Zhang, G. Fu, H. Cai, J. Yang, G. Fan, Y. Chen, T. Li, L. Zhao, Materials, 16(2), 767 (2023).

Google Scholar

[5] J. Steiner, P. J. Wellmann, Materials, 15(5), 1897 (2022).

Google Scholar

[6] J. Pezoldt, V. Cimalla, Crystals, 10(6), 523 (2020).

Google Scholar
