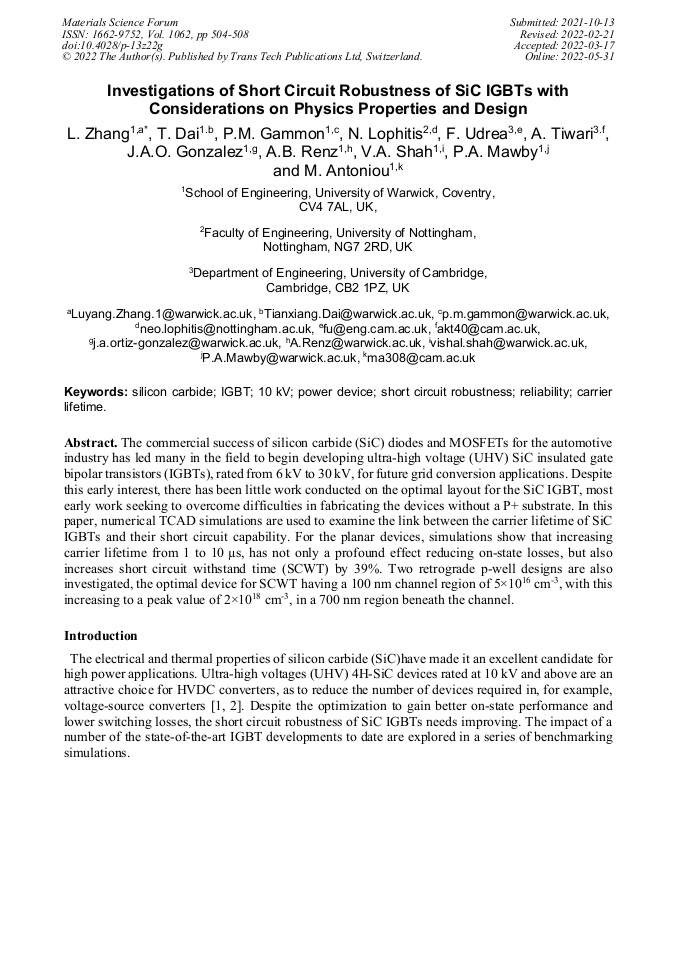

Investigations of Short Circuit Robustness of SiC IGBTs with Considerations on Physics Properties and Design

Abstract:

The commercial success of silicon carbide (SiC) diodes and MOSFETs for the automotive industry has led many in the field to begin developing ultra-high voltage (UHV) SiC insulated gate bipolar transistors (IGBTs), rated from 6 kV to 30 kV, for future grid conversion applications. Despite this early interest, there has been little work conducted on the optimal layout for the SiC IGBT, most early work seeking to overcome difficulties in fabricating the devices without a P+ substrate. In this paper, numerical TCAD simulations are used to examine the link between the carrier lifetime of SiC IGBTs and their short circuit capability. For the planar devices, simulations show that increasing carrier lifetime from 1 to 10 μs, has not only a profound effect reducing on-state losses, but also increases short circuit withstand time (SCWT) by 39%. Two retrograde p-well designs are also investigated, the optimal device for SCWT having a 100 nm channel region of 5×10¹⁶ cm^-3, with this increasing to a peak value of 2×10¹⁸ cm^-3, in a 700 nm region beneath the channel.

By email View Pdf

You have full access to the following eBook

Silicon Carbide and Related Materials 2021

Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1062)

Pages:

504-508

DOI:

https://doi.org/10.4028/p-13z22g

Citation:

Cite this paper

Online since:

May 2022

Authors:

Lu Yang Zhang*, Tian Xiang Dai, Peter Michael Gammon, Neophytos Lophitis, Florin Udrea, Amit Tiwari, Jose Ortiz-Gonzalez, A. Benjamin Renz, Vishal Ajit Shah, Philip Andrew Mawby, Marina Antoniou

Keywords:

10 kV, Carrier Lifetime, IGBT, Power Device, Reliability, Short Circuit Robustness, Silicon Carbide

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Citation:

* - Corresponding Author

References

[1] C. Shen, S. Jahdi, O. Alatise, J. Ortiz-Gonzalez, A. Aithal, and P. Mellor, Prospects and Challenges of 4H-SiC Thyristors in Protection of HB-MMC-VSC-HVDC Converters,, IEEE Open Journal of Power Electronics, vol. 2, pp.145-154, (2021).

DOI: 10.1109/ojpel.2021.3060942

Google Scholar

[2] K. Jacobs, S. Heinig, D. Johannesson, S. Norrga, and H. P. Nee, Comparative Evaluation of Voltage Source Converters With Silicon Carbide Semiconductor Devices for High-Voltage Direct Current Transmission,, IEEE Transactions on Power Electronics, vol. 36, no. 8, pp.8887-8906, (2021).

DOI: 10.1109/tpel.2021.3049320

Google Scholar

[3] A. Koyama et al., 20 kV-Class Ultra-High Voltage 4H-SiC n-IE-IGBTs,, in Materials Science Forum, 2020, vol. 1004: Trans Tech Publ, pp.899-904.

DOI: 10.4028/www.scientific.net/msf.1004.899

Google Scholar

[4] E. V. Brunt et al., 22 kV, 1 cm2, 4H-SiC n-IGBTs with improved conductivity modulation," in 2014 IEEE 26th International Symposium on Power Semiconductor Devices & IC,s (ISPSD), 15-19 June 2014 2014, pp.358-361.

DOI: 10.1109/ispsd.2014.6856050

Google Scholar

[5] Y. Xiaolei et al., Low Ron,sp.diff and Ultra-high Voltage 4H-SiC n-channel IGBTs with carrier lifetime enhancement process,, in 2020 17th China International Forum on Solid State Lighting & 2020 International Forum on Wide Bandgap Semiconductors China (SSLChina: IFWS), 23-25 Nov. 2020 2020, pp.42-44.

DOI: 10.1109/sslchinaifws51786.2020.9308751

Google Scholar

[6] A. K. Tiwari, M. Antoniou, N. Lophitis, S. Perkin, T. Trajkovic, and F. Udrea, Retrograde p-well for 10-kV class SiC IGBTs,, IEEE Transactions on Electron Devices, vol. 66, no. 7, pp.3066-3072, (2019).

DOI: 10.1109/ted.2019.2918008

Google Scholar

[7] V. Afanasev, M. Bassler, G. Pensl, and M. Schulz, Intrinsic SiC/SiO2 interface states,, physica status solidi (a), vol. 162, no. 1, pp.321-337, (1997).

DOI: 10.1002/1521-396x(199707)162:1<321::aid-pssa321>3.0.co;2-f

Google Scholar

[8] A. Pérez-Tomás, P. Godignon, N. Mestres, and J. Millán, A field-effect electron mobility model for SiC MOSFETs including high density of traps at the interface,, Microelectronic engineering, vol. 83, no. 3, pp.440-445, (2006).

DOI: 10.1016/j.mee.2005.11.007

Google Scholar

[9] B. Kakarla, A. Tsibizov, R. Stark, I. K. Badstübner, and U. Grossner, Short Circuit Robustness and Carrier Lifetime in Silicon Carbide MOSFETs,, in 2020 32nd International Symposium on Power Semiconductor Devices and ICs (ISPSD), 13-18 Sept. 2020 2020, pp.234-237.

DOI: 10.1109/ispsd46842.2020.9170121

Google Scholar

[10] K. Kawahara, J. Suda, and T. Kimoto, Analytical model for reduction of deep levels in SiC by thermal oxidation,, Journal of Applied Physics, vol. 111, no. 5, p.053710, (2012).

DOI: 10.1063/1.3692766

Google Scholar
