Polyimide Passivation Effect on High Voltage 4H-SiC PiN Diode Breakdown Voltage

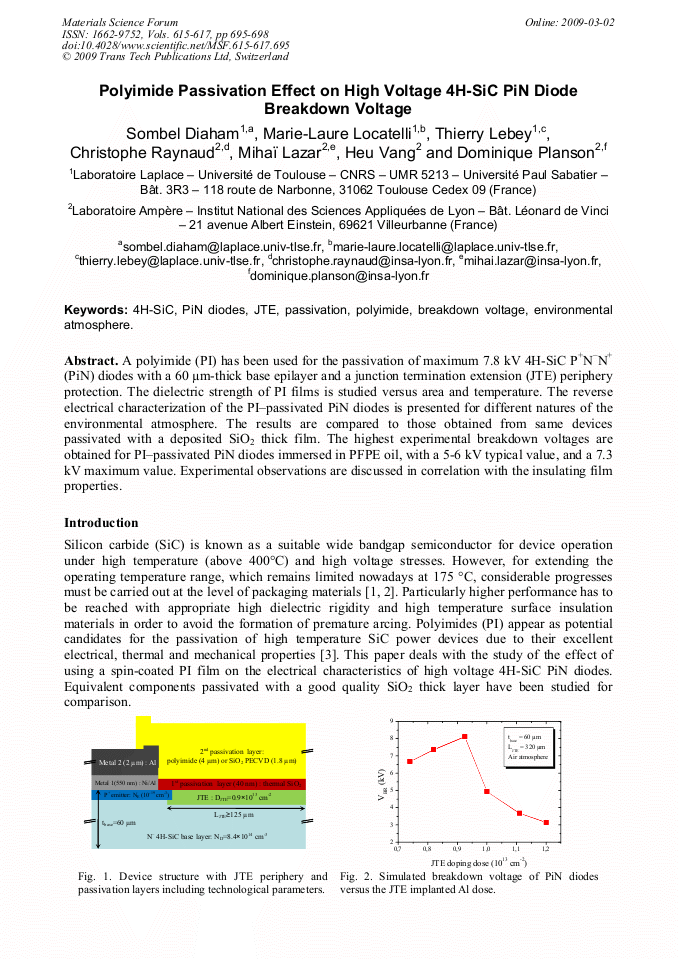

Article Preview

Abstract:

A polyimide (PI) has been used for the passivation of maximum 7.8 kV 4H-SiC P+N–N+ (PiN) diodes with a 60 µm-thick base epilayer and a junction termination extension (JTE) periphery protection. The dielectric strength of PI films is studied versus area and temperature. The reverse electrical characterization of the PI–passivated PiN diodes is presented for different natures of the environmental atmosphere. The results are compared to those obtained from same devices passivated with a deposited SiO2 thick film. The highest experimental breakdown voltages are obtained for PI–passivated PiN diodes immersed in PFPE oil, with a 5-6 kV typical value, and a 7.3 kV maximum value. Experimental observations are discussed in correlation with the insulating film properties.

You might also be interested in these eBooks
Silicon Carbide and Related Materials 2008 View Preview

Info:

Periodical:

Materials Science Forum (Volumes 615-617)

Pages:

695-698

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.615-617.695

Citation:

Cite this paper

Online since:

March 2009

Authors:

Sombel Diaham, Marie Laure Locatelli, Thierry Lebey, Christophe Raynaud, Mihai Lazar, Heu Vang, Dominique Planson

Keywords:

4H-SiC, Breakdown Voltage, Environmental Atmosphere, Junction Termination Extension (JTE), Passivation, PiN Diode, Polyimide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2009 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] F. Nallet: Techniques de l'ingénieur, Article RE 3 (2002).

Google Scholar

[2] S. Diaham, M. L. Locatelli, and T. Lebey: Mat. Sci. Forum Vol. 556-557 (2007), p.671.

Google Scholar

[3] S. Diaham, M. L. Locatelli, and T. Lebey: Appl. Phys. Lett. Vol. 91 (2007), p.122913.

Google Scholar

[4] M. Lazar et al: J. Appl. Phys. Vol. 94 (2003), p.2992.

Google Scholar

[5] A. O. Konstantinov et al.: Appl. Phys. Lett. Vol. 71 (1997), p.90.

Google Scholar

[6] K. Nakayama et al, Mat. Sci. Forum, Vol. 483-485 (2005), p.969.

Google Scholar

[7] S. Diaham, S. Zelmat et al.: Proceedings of CEIDP 2008, 26-29 October, Québec City, Canada.

Google Scholar

[8] D. Peters, R. Elpelt et al.: Mat. Sci. Forum Vol. 483-485, (2005), p.977.

Google Scholar

[9] K. Vassilevski et al: Mat. Sci. Forum Vol. 556-557 (2007), p.873.

Google Scholar

[10] W. Bartsch, H. Mitlehner, and S. Gediga: Mat. Sci. Forum Vol. 556-557 (2007).

Google Scholar
