Design and Manufacturing of 1200V SiC JBS Diodes with Low On-State Voltage Drop and Reverse Blocking Leakage Current

Abstract:

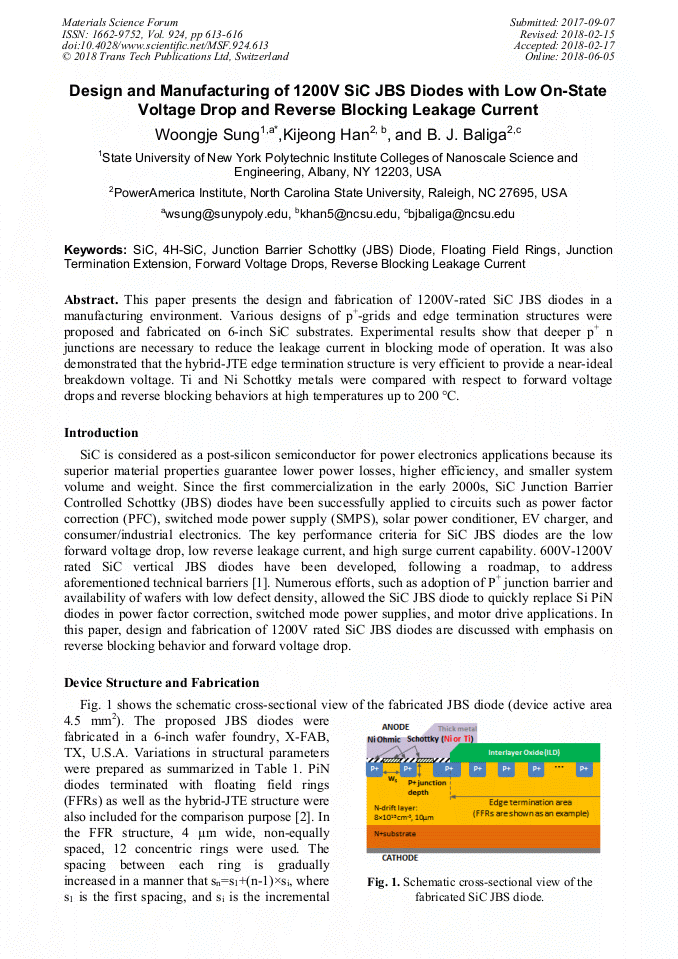

Article Preview

This paper presents the design and fabrication of 1200V-rated SiC JBS diodes in a manufacturing environment. Various designs of p+-grids and edge termination structures were proposed and fabricated on 6-inch SiC substrates. Experimental results show that deeper p+ n junctions are necessary to reduce the leakage current in blocking mode of operation. It was also demonstrated that the hybrid-JTE edge termination structure is very efficient to provide a near-ideal breakdown voltage. Ti and Ni Schottky metals were compared with respect to forward voltage drops and reverse blocking behaviors at high temperatures up to 200 °C.

Info:

Periodical:

Edited by:

Robert Stahlbush, Philip Neudeck, Anup Bhalla, Robert P. Devaty, Michael Dudley and Aivars Lelis

Pages:

613-616

Citation:

W. J. Sung et al., "Design and Manufacturing of 1200V SiC JBS Diodes with Low On-State Voltage Drop and Reverse Blocking Leakage Current", Materials Science Forum, Vol. 924, pp. 613-616, 2018

Online since:

June 2018

Export:

Price:

$38.00

* - Corresponding Author

[1] Peter Friedrichs, SiC Power Devices – Lessons Learned and Prospects After 10 Years of Commercial Availability,, in Proc. CS Mantech Conf., Palm Springs, California, USA, May 16-19, (2011).

[2] Woongje Sung and B. J. Baliga, A Near Ideal Edge Termination Technique for 4500V 4H-SiC Devices: The Hybrid Junction Termination Extension,, IEEE Electron Device Lett., vol. 37, no. 12, pp.1609-1612, Dec. 2016.

DOI: https://doi.org/10.1109/led.2016.2623423

[3] B. J. Baliga, Silicon Carbide Power Devices. World Scientific Publishing Co. Ltd., 2005, Chap. 6, Section 6.1, p.104–119.

[4] Woongje Sung, Edward Van Brunt, B. J. Baliga, and Alex. Q. Huang, A New Edge Termination Technique for High-Voltage Devices in 4H-SiC – Multiple-Floating-Zone Junction Termination Extension,, IEEE Electron Device Lett., vol. 32, no. 7, p.880–882, July. 2011..

DOI: https://doi.org/10.1109/led.2011.2144561

[5] Woongje Sung and B. J. Baliga, Monolithically Integrated 4H-SiC MOSFET and JBS Diode (JBSFET) Using a Single Ohmic/Schottky Process Scheme,, IEEE Electron Device Lett., vol. 37, no. 12, pp.1605-1608, December 2016.

DOI: https://doi.org/10.1109/led.2016.2618720
