Electrical Scanning Probe Microscopy Investigation of Schottky and Metal-Oxide Junctions on Hetero-Epitaxial 3C-SiС on Silicon

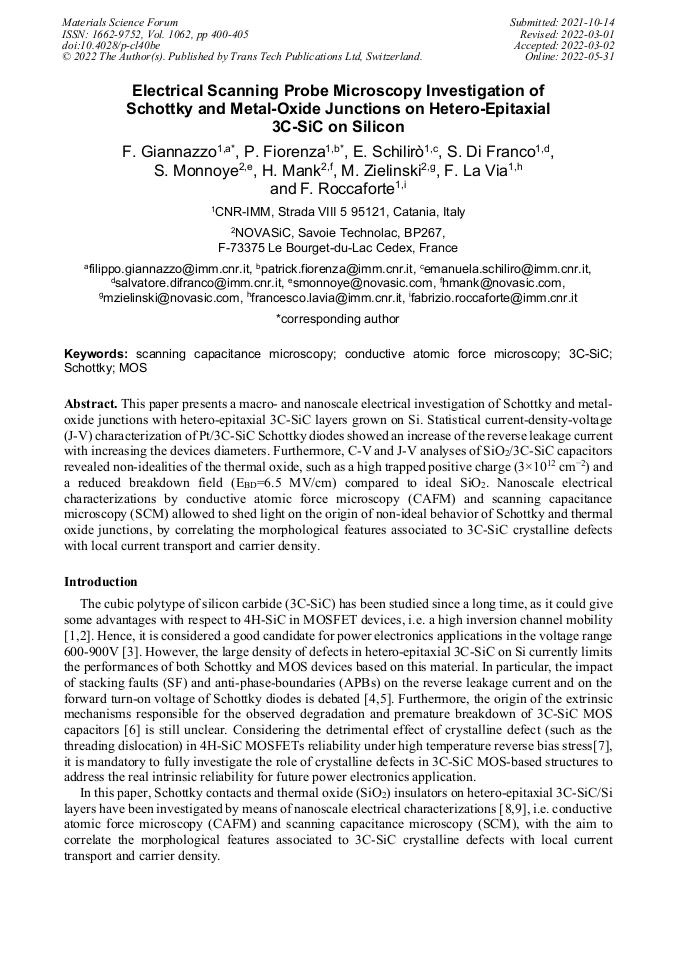

Article Preview

Abstract:

This paper presents a macro-and nanoscale electrical investigation of Schottky and metal-oxide junctions with hetero-epitaxial 3C-SiC layers grown on Si. Statistical current-density-voltage (J-V) characterization of Pt/3C-SiC Schottky diodes showed an increase of the reverse leakage current with increasing the devices diameters. Furthermore, C-V and J-V analyses of SiO2/3C-SiC capacitors revealed non-idealities of the thermal oxide, such as a high trapped positive charge (3×1012 cm−2) and a reduced breakdown field (EBD=6.5 MV/cm) compared to ideal SiO2. Nanoscale electrical characterizations by conductive atomic force microscopy (CAFM) and scanning capacitance microscopy (SCM) allowed to shed light on the origin of non-ideal behavior of Schottky and thermal oxide junctions, by correlating the morphological features associated to 3C-SiC crystalline defects with local current transport and carrier density.

By email View Pdf
You have full access to the following eBook
Silicon Carbide and Related Materials 2021 Read eBook

Info:

Periodical:

Materials Science Forum (Volume 1062)

Pages:

400-405

DOI:

https://doi.org/10.4028/p-cl40be

Citation:

Cite this paper

Online since:

May 2022

Authors:

Filippo Giannazzo*, Patrick Fiorenza, Emanuela Schiliro, Salvatore Di Franco, Sylvain Monnoye, Hugues Mank, Marcin Zielinski, Francesco La Via, Fabrizio Roccaforte

Keywords:

3C-SiC, Conductive Atomic Force Microscopy, MOS, Scanning Capacitance Microscopy, Schottky

Export:

RIS, BibTeX

Permissions:

Creative Commons CC BY 4.0

Share:

Citation:

* - Corresponding Author

References

[1] H. Nagasawa, M. Abe, K. Yagi, T. Kawahara, N. Hatta, phys. stat. sol. (b) 245, 1272 (2008).

Google Scholar

[2] M. Kobayashi, et al., Mater. Sci. Forum 679-680, 645 (2011).

Google Scholar

[3] F. Li, F. Roccaforte, G. Greco, P. Fiorenza et al., Materials 14, 5831 (2021).

Google Scholar

[4] J. Eriksson, M-H. Weng, F. Roccaforte, F. Giannazzo, et al., Appl. Phys. Lett. 95, 081907 (2009).

Google Scholar

[5] G. Fisicaro, C. Bongiorno, I. Deretzis, F. Giannazzo, et al., Appl. Phys. Rev. 7, 021402 (2020).

Google Scholar

[6] F. Li, Q. et al. IEEE Trans. Electr. Dev., 67, 237 (2020).

Google Scholar

[7] P. Fiorenza, et al. Nanotechnology 31, 125203 (2020).

Google Scholar

[8] F. Giannazzo, et al. Adv. Electron. Mater., 6, 1901171 (2020).

Google Scholar

[9] P. Fiorenza, et al. Appl. Surf. Sci. 526, 146656 (2020).

Google Scholar

[10] M. Zielinski, et al., Mater. Sci. Forum 924, 306 (2018).

Google Scholar
