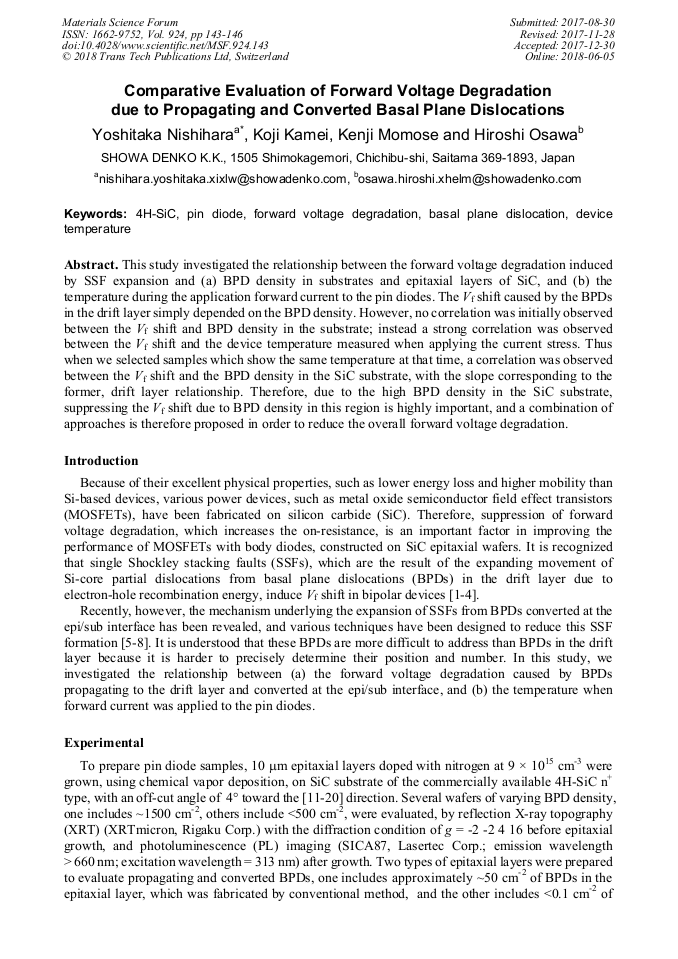

Comparative Evaluation of Forward Voltage Degradation due to Propagating and Converted Basal Plane Dislocations

Abstract:

This study investigated the relationship between the forward voltage degradation induced by SSF expansion and (a) BPD density in substrates and epitaxial layers of SiC, and (b) the temperature during the application forward current to the pin diodes. The V_f shift caused by the BPDs in the drift layer simply depended on the BPD density. However, no correlation was initially observed between the V_f shift and BPD density in the substrate; instead a strong correlation was observed between the V_f shift and the device temperature measured when applying the current stress. Thus when we selected samples which show the same temperature at that time, a correlation was observed between the V_f shift and the BPD density in the SiC substrate, with the slope corresponding to the former, drift layer relationship. Therefore, due to the high BPD density in the SiC substrate, suppressing the V_f shift due to BPD density in this region is highly important, and a combination of approaches is therefore proposed in order to reduce the overall forward voltage degradation.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2017

View Preview

Info:

Periodical:

Materials Science Forum (Volume 924)

Pages:

143-146

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.924.143

Citation:

Cite this paper

Online since:

June 2018

Authors:

Yoshitaka Nishihara*, Koji Kamei, Kenji Momose, Hiroshi Osawa

Keywords:

4H-SiC, Basal Plane Dislocation (BPD), Device Temperature, Forward Voltage Degradation, PiN Diode

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] M. Skowronski and S. Ha, J. Appl. Phys. 99 (2006) 011101.

Google Scholar

[2] A. Agarwal, H. Fatima, S. Haney, and S.-H. Ryu, IEEE Electron Device Lett. 28 (2007) 587.

Google Scholar

[3] J. D. Caldwell, R. E. Stahlbush, M. G. Ancona, O. J. Glembocki, and K. D. Hobart, J. Appl. Phys. 108 (2010) 044503.

Google Scholar

[4] S. Yamamoto, Y. Nakao, N. Tomita, S. Nakata, and S. Yamakawa, Mater. Sci. Forum 778-780 (2014) 951.

Google Scholar

[5] K. Konishi, S. Yamamoto, S. Nakata, Y. Nakamura, Y. Nakanishi, T. Tanaka, Y. Mitani, N. Tomita, Y. Toyoda, and S. Yamakawa, J. Appl. Phys. 114 (2013) 014504.

DOI: 10.1063/1.4812590

Google Scholar

[6] N. Kawabata, A. Tanaka, M. Tsujimura, Y. Ueji, K. Omote, H. Yamaguchi, H. Matsuhata, and K. Fukuda, Mater. Sci. Forum 858 (2015) 384.

DOI: 10.4028/www.scientific.net/msf.858.384

Google Scholar

[7] A. Tanaka, H. Matsuhata, N. Kawabata, D. Mori, K. Inoue, M. Ryo, T. Fujimoto, T. Tawara, M. Miyazato, M. Miyajima, K. Fukuda, A. Ohtsuki, T. Kato, H. Tsuchida, Y. Yonezawa, and T. Kimoto, J. Appl. Phys. 119 (2016) 095711.

DOI: 10.1063/1.4943165

Google Scholar

[8] S. Hayashi, T. Naijo, T. Yamashita, M. Miyazato, M. Ryo, H. Fujisawa, M. Miyajima, J. Senzaki, T. Kato, and Y. Yonezawa, Appl. Phys. Express 10 (2017) 081201.

DOI: 10.7567/apex.10.081201

Google Scholar

[9] N. Ishibashi, K. Fukada, A. Bandoh, K. Momose, and H. Osawa, Mater. Sci. Forum 897 (2017) 55.

Google Scholar
